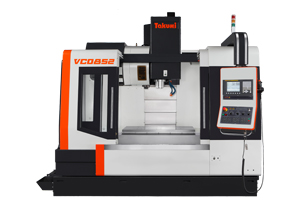

VC Series

Details

Overview Specs


• 33.86 (X-Axis) x 20.47 (Y-Axis) x 24.02 (Z-Axis) in (860 x 520 x 610 mm) travels
• 1,417 x 1,417 x 944 in/min (36 x 36 x 24 m/min) X, Y, and Z rapids
• 24-station swing-arm ATC
• Chip auger with lift-up exhaust tube standard
• 12,000 RPM belt spindle
• 40 taper
• Ergonomic table simplifies setup
• 39.37 x 20.47 in (1,000 x 520 mm) table, 1,102 lbs (500 kg) capacity
• Direct-drive z-axis increases stability
• Spindle chiller standard
• 12,556 lbs (5,700 kg) machine weight

Full Product Specifications

Details

Overview Specs


• Rapids of 1,417 inches per minute
• Perfect combination of fast cutting and high stability
• Designed and built for mold machining
• Pre-tensioned ballscrews minimize thermal growth and improve accuracy
• Ergonomic table simplifies setup
• Swiveling control panel optimizes floor space utilization
• Robust, precision-machined castings
• Hand-scraped contact areas
• 24-tool, CAT 40, swing-arm ATC standard
• Integrated washdown and chip management system
• Spindle chiller maximizes heat dissipation
• Direct-coupled ballscrews increase accuracy
• Absolute encoder ensures fast start-up
• FANUC© 0i-MF Series Control
• Fast, trained, factory service and support
