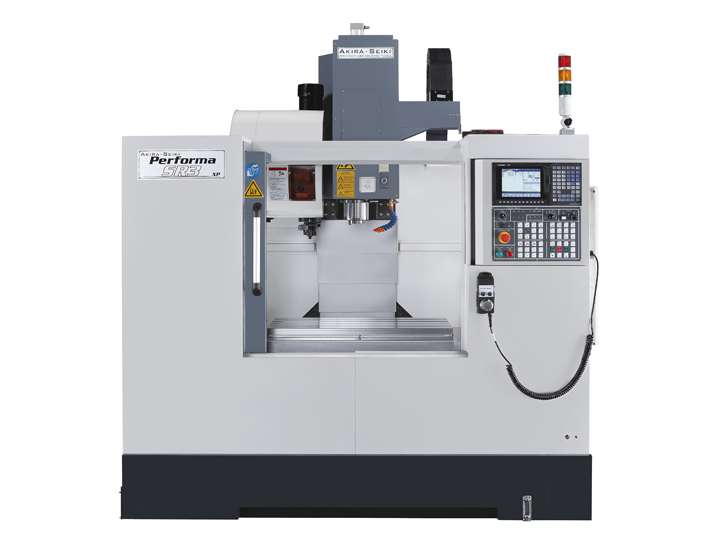

JR / SR Series

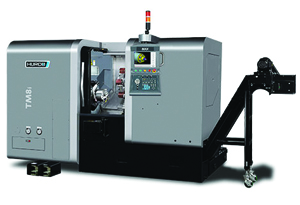

TM6i
Details
Overview Specs
| JR | |||
| CONTROL SYSTEM | AKIRA M:845 (Fanuc G code compatible) | ||
| TRAVEL | |||
| X Axis Travel | mm/inch | 410 / 16.1 | |
| Y Axis Travel | mm/inch | 430/ 16.9 | |
| Z Axis Travel | mm/inch | 460 / 18.1 | |
| Spindle Nose to Table Surface | mm/inch | 75~535/ 3-21 | |
| Spindle Center to Column Cover | mm/inch | 435/17 | |
| TABLE | |||
| Table Size (L x W) | mm/inch | 560 x 380 / 22 x 15 |
|
| T Slot | mm/inch | 16 x 80 x 4 slots / 0.63 x 3.15 x 4 slots |
|
| Max. Loading | kgs/lbs | 432/952 | |
| Standard Loading | kgs/lbs | 360/794 | |
| SPINDLE | |||
| Max. Motor Power (Peak) | HP | 12 | |
| Max. Speed | rpm | 9,000 | |
| Spindle Taper | ISO 40 | BT40 | |
| FEED | |||
| Rapid Feed X/Y/Z | M/min rpm | 30 /30 / 24 1181 / 1181 /945 |
|
| Cutting Feed X/Y/Z | M/min rpm | 10 /10 /10 394/394 /394 |
|
| ACCURACY | |||
| Positioning | mm/inch | 0.01 / 0.00039 | |
| Repeatability | mm/inch | ±0.003/±0.00012 | |
| ATC | |||
| Tool Storage Arm ATC | – | 16T | |
| Max. Tool Diameter | mm/inch | 75/3 | |
| Max. Tool Diameter (Without Neighbor Tool) |
mm/inch | 150 / 5.9 | |
| Max. Tool Length | mm/inch | 250 / 9.8 | |
| Max. Tool Weight | kgs/lbs | 7/15 | |
| Tool to Tool Time (60hz) | sec. | 2.2 | |
| GENERAL | |||
| Tank Capacity | liter/gal | 150 / 39.6 | |
| Chip Disposal | – | Drawer | |
| Air Pressure Requirement | Mpa/psi | 0.5/72.5 | |
| Power Requirement | KVA | 20 | |
| Floor Space | mm/inch | 1900 x 1935 / 75x 76 |
|
| Weight | kgs/lbs | 2850 /6283 | |
Details
Overview Specs
Travel:8 x 20 in
Table Size: 14 in
Spindle: 4.8k, 133 lb/ft @ 870
Tool Capacity: 10 Station
Machine Weight: 8,708 lb

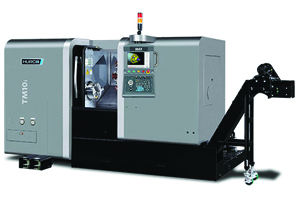

TM10i
Details
Overview Specs
Travel: 9.8 x 29.5 in
Table Size: 17.7 in
Spindle: 3k, 260 lb/ft @ 600
Tool Capacity: 12 Station
Machine Weight: 11,028 lb

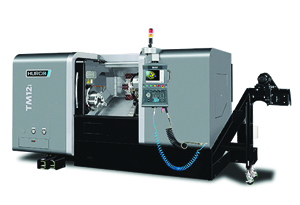

TM12i
Details
Overview Specs
Travel: 12 x 40 in
Table Size: 19.88 in
Spindle: 2.8k, 445 lb/ft @ 870
Tool Capacity: 12 Station
Machine Weight: 14,740 lb
TM18i
Details
Overview Specs
Travel: 17 x 40 in
Table Size: 25 in
Spindle: 1.6k, 445 lb/ft @ 870
Tool Capacity: 12 Station
Machine Weight: 25,245 lb
TM18Li
Details
Overview Specs
Travel: 17 x 80 in
Table Size: 25 in
Spindle: 1.6k, 445 lb/ft @ 870
Tool Capacity: 12 Station
Machine Weight: 30,074 lb

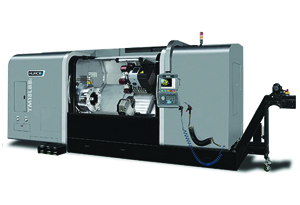

TM18LBBi

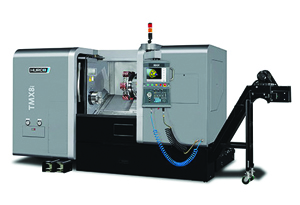

TMX8i
Details
Overview Specs
Travel: 8 x 22 x 25.2 in
Table Size: 14.0 in
Spindle: 4.5k, 178 lb/ft @ 1,100
Tool Capacity: 12 Station
Machine Weight: 13,000 lb

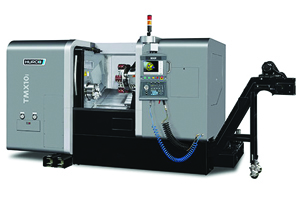

TMX10i
Details
Overview Specs
Travel: 9.15 x 26 x 29.1 in
Table Size: 16.34 in
Spindle: 3.8k, 258lb/ft @ 758.8
Tool Capacity: 12 Station
Machine Weight: 13,420 lb

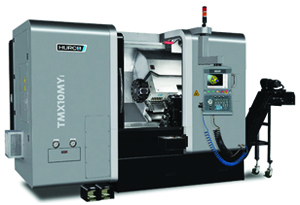

TMX10MYi
Details
Overview Specs
Travel: 8 x 22 x 25.2 x 4.4 in
Table Size: 13.2 in
Spindle: 4.5k, 178lb/ft @ 1100
Tool Capacity: 12 Station
Machine Weight: 14,520 lb
Details
Overview Specs
Travel: 8 x 22 x 25.2 x 4.4 in
Table Size: 13.2 in
Spindle: 4.5k, 178lb/ft @ 1100
Tool Capacity: 12 Station
Machine Weight: 14,520 lb

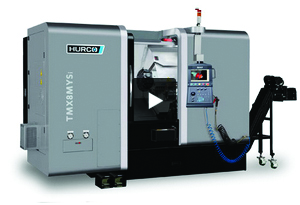

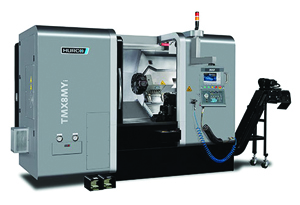

TMX8MYi
Details
Overview Specs
Travel: 9.15 x 26 x 29.1 x 4.4 in
Table Size: 14.76 in
Spindle: 4k, 20.4lb/ft @ 27.6Nm
Tool Capacity: 12 Station
Machine Weight: 14,520 lb
TMX8MYSi
Details
Overview Specs
Travel: 8 x 22 x 25.2 x 4.4 in
Table Size: 13.23 in
Spindle: 4.5k, 178lb/ft @ 1100
Tool Capacity: 12 Station
Machine Weight: 14,520 lb

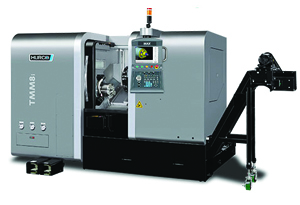

TMM8i
Details
Overview Specs
Travel: 17 x 80 in
Table Size: 25 in
Spindle: 4.8k, 258ft @ 359
Tool Capacity: 12 Station
Machine Weight: 9,390 lb

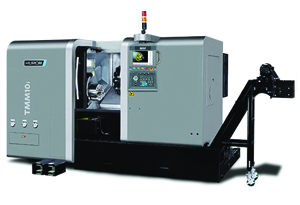

TMM10i
Details
Overview Specs
Travel: 9 x 22 in
Table Size: 11.2 in
Spindle: 3k, 350ft @ 360
Tool Capacity: 12 Station
Machine Weight: 9,750 lb

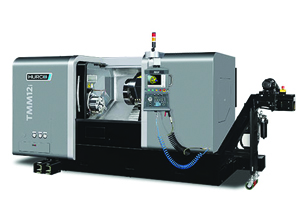

TMM12i
Details
Overview Specs
Travel: 12 x 40 in
Table Size: 14.2 in
Spindle: 2.8k, 333ft @ 380
Tool Capacity: 12 Station
Machine Weight: 16,758 lb
