Milling

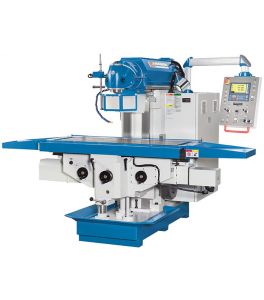

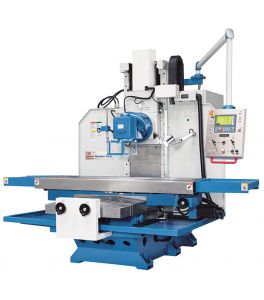

Servo-conventional Milling Machines Servomill® UWF
Details
Overview Specs
Technical Data
| Servomill® UWF 10 | Servomill® UWF 12 | Servomill UWF 15 | |
| Working area | |||
| Table dimensions | 1.235×460 mm | 1.600×500 mm | 2.000×500 mm |
| Table load capacity | 800 kg | 1.000 kg | 1.000 kg |
| Number of T-slots | 5 Pieces | ||
| T-slots, width | 18 mm | ||
| T-slots, spacing | 80 mm | ||
| Travels | |||
| Travel X-axis | 900 mm | 1.200 mm | 1.400 mm |
| Travel Y-axis | 650 mm | 700 mm | 700 mm |
| Travel Z-axis | 450 mm | 500 mm | 500 mm |
| Milling Head | |||
| Speed range (2) | 30-390 / 390-2050 1/min | ||
| Spindle mount | SK 40 / DIN 2080 | SK 50 / DIN 2080 | SK 50 / DIN 2080 |
| Swivel angle | 360° | ||
| Spindle center-to-table distance | 30 – 480 mm | 50 – 550 mm | 50 – 550 mm |
| Rapid feed | |||
| Rapid feed X-axis | 2.200 mm/min | ||
| Rapid feed Y-axis | 2.200 mm/min | ||
| Rapid feed Z-axis | 1.100 mm/min | ||

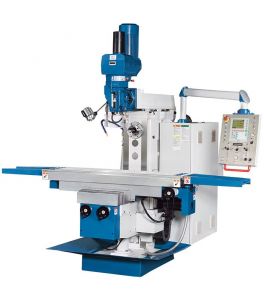

Servo-conventional Milling Machines Servomill® UFM 8 V
Details
Overview Specs
Technical Data
Working area
Table dimensions 1.600×320 mm
Table load capacity 450 kg
Number of T-slots 3 Pieces
T-slots, width 18 mm
T-slots, spacing 80 mm
Travels
Travel X-axis 1.300 mm
Travel Y-axis 290 mm
Travel Z-axis 450 mm
Top slide travel 550 mm

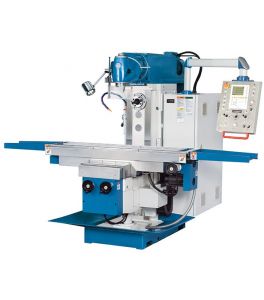

Servo-conventional Milling Machines Servomill® UWF 5
Details
Overview Specs
Technical Data
Working area
Table dimensions 1.600×320 mm
Table load capacity 300 kg
Number of T-slots 3 Pieces
T-slots, width 18 mm
T-slots, spacing 80 mm
Travels
Travel X-axis 1.300 mm
Travel Y-axis 290 mm
Travel Z-axis 450 mm
Milling Head
Speed range (2) 60-360 / 360-1800 1/min
Spindle mount ISO 50
Swivel angle 360°
Upper beam travel 550 mm
Spindle center-to-table distance 186 – 636 mm

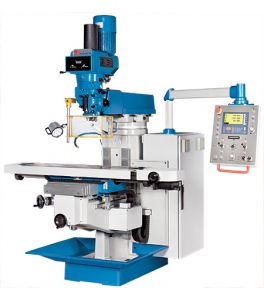

Servo-conventional Milling Machines Servomill® 700
Details
Overview Specs
Technical Data
Working area
Table set up area 1.370×300 mm
Table load capacity (max.) 350 kg
Travels
Travel X-axis 680 mm
Travel Y-axis 365 mm
Travel Z-axis 370 mm
Vertical milling head
Speed range (infinitely variable, back gear ranges) 50 – 4.000 1/min
Spindle mount ISO 40
Quill stroke 125 mm
Spindle nose-to-table surface distance 180 – 550 mm
Rapid feed
Rapid feed X-axis 5.000 mm/min
Rapid feed Y-axis 3.000 mm/min
Rapid feed Z-axis 2.000 mm/min

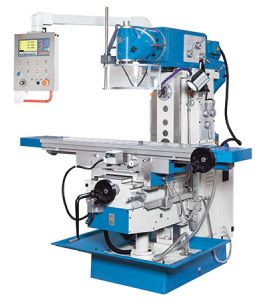

Universal Milling Machines UWF 3.2
Details
Overview Specs
Technical Data
Working area
Table set up area 1.370×320 mm
Table load capacity (max.) 260 kg
Number of T-slots 3 Pieces
T-slot (width x spacing) 14×80 mm
Milling table swivel range 45 deg
Travels
Travel X-axis 1.000 mm
Travel Y-axis 360 mm
Travel Z-axis 400 mm
Vertical milling head
Spindle speed (vertical) (11) 45 – 1.660 1/min
Spindle mount DIN 2080 / ISO 40
Throat 300 – 765 mm
Vertical spindle-to-table surface distance 260 – 660 mm
Milling head swivel range 360 deg

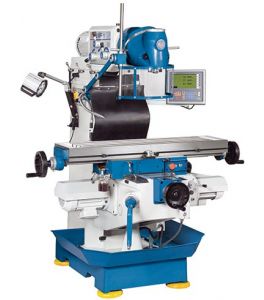

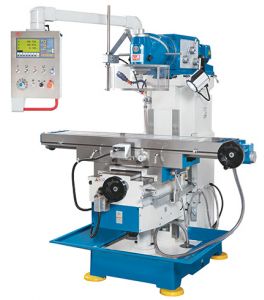

Universal Milling Machines UWF 1.2
Details
Overview Specs
Technical Data
Working area
Table set up area 1.370×300 mm
Table load capacity (max.) 300 kg
Number of T-slots 3 Pieces
T-slot (width x spacing) 14×80 mm
Milling table swivel range 45 deg
Travels
Travel X-axis 1.000 mm
Travel Y-axis 360 mm
Travel Z-axis 400 mm
Vertical milling head
Spindle speed (vertical) (11) 45 – 1.660 1/min
Spindle mount DIN 2080 / ISO 40
Throat 150 – 550 mm
Vertical spindle-to-table surface distance 100 – 500 mm
Milling head swivel range 360 deg
Universal Milling Machines VHF 3.2
Details
Overview Specs
Technical Data
Working area
Table set up area 1.370×320 mm
Table load capacity (max.) 300 kg
Number of T-slots 3 Pieces
T-slot (width x spacing) 14×80 mm
Milling table swivel range 45 deg
Travels
Travel X-axis 1.000 mm
Travel Y-axis 360 mm
Travel Z-axis 400 mm
Vertical milling head
Spindle speed (vertical) 50 – 3.750 1/min
Spindle mount (vertical) ISO 40
Throat 178 – 868 mm
Vertical spindle-to-table surface distance 160 – 560 mm
Milling head swivel range 90 deg
Cutter head tilt angle 45 deg
Universal Milling Machines UWF 1.1
Details
Overview Specs
Technical Data
Working area
Table set up area 1.120×260 mm
Table load capacity (max.) 250 kg
Number of T-slots 3 Pieces
T-slot (width x spacing) 14×63 mm
X-axis travel 600 mm
Y axis travel 240 mm
Z-axis travel 380 mm
Vertical milling head
Spindle speed (vertical) 45 – 1.660 1/min
Spindle mount DIN 2080 / ISO 40
Throat 60 – 500 mm
Vertical spindle-to-table surface distance 100 – 480 mm
Milling head swivel range 360 deg
Rapid feed
Rapid feed Z-axis 422 mm/min

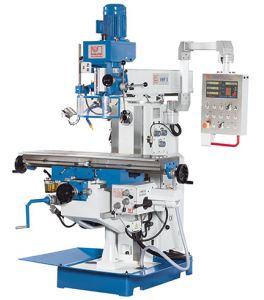

Universal Milling Machines VHF 3
Details
Overview Specs
Technical Data
Working area
Table set up area 1.320×320 mm
Number of T-slots 5 Pieces
T-slot (width x spacing) 14×63 mm
Table load capacity 300 kg
Travels
Travel X-axis 750 mm
Travel Y-axis 245 mm
Travel Z-axis 430 mm
Vertical milling head
Spindle mount ISO 40
Spindle speeds (8) 90 – 2.000 1/min
Quill stroke 120 mm
Throat 200 – 540 mm
Spindle nose-to-table surface distance 140 – 540 mm
Head swivel range ± 45°

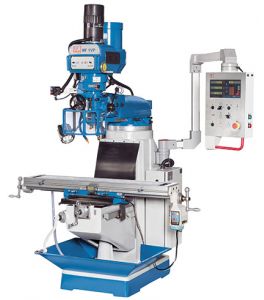

Universal Milling Machines MF 1 VKP
Details
Overview Specs
Technical Data
Working area
Table set up area 1.245×230 mm
Number of T-slots 3 Pieces
T-slots, spacing 63,5 mm
T-slots, width 16 mm
Travels
Travel X-axis 760 mm
Travel Y-axis 290 mm
Travel Z-axis 370 mm
Vertical milling head
Speed range, infinitely variable 70 – 3.600 1/min
Quill stroke 127 mm
Spindle mount ISO 30
Throat 171 – 476 mm

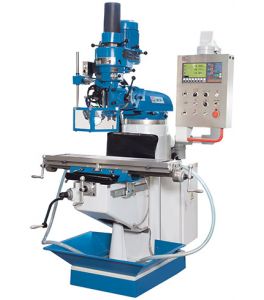

Universal Milling Machines MF 1 P
Details
Overview Specs
Technical Data
Working area
Table set up area 1.060×230 mm
Number of T-slots 3 Pieces
T-slot (width x spacing) 16×63,5 mm
Travels
Travel X-axis 670 mm
Travel Y-axis 290 mm
Travel Z-axis 370 mm
Vertical milling head
Spindle speeds (16) 80 – 4.500 1/min
Quill stroke 127 mm
Spindle mount ISO 30
Throat 171 – 476 mm

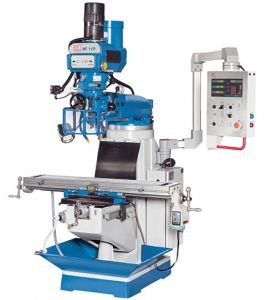

Universal Milling Machines MF 1 VP
Details
Overview Specs
Technical Data
Working area
Table set up area 1.245×230 mm
Number of T-slots 3 Pieces
T-slot (width x spacing) 16×63,5 mm
Travels
Travel X-axis 760 mm
Travel Y-axis 290 mm
Travel Z-axis 370 mm
Vertical milling head
Spindle speeds (2) 60 – 4.200 1/min
Quill stroke 127 mm
Spindle mount ISO 30
Throat 171 – 476 mm

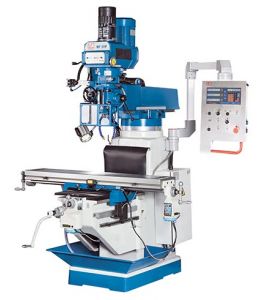

Universal Milling Machines MF 5 VP
Details
Overview Specs
Technical Data
Working area
Table set up area 1.370×250 mm
Table load capacity (max.) 350 kg
Travels
Travel X-axis 800 mm
Travel Y-axis 390 mm
Travel Z-axis 380 mm
Vertical milling head
Spindle speed (vertical) 70 – 3.600 1/min
Spindle mount ISO 40
Quill stroke 127 mm

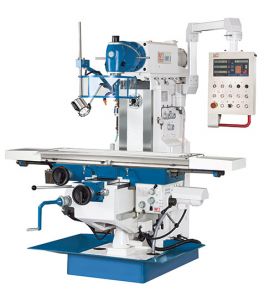

Universal Milling Machines UWF 3
Details
Overview Specs
Technical Data
Working area
Table set up area 1.320×320 mm
Table load capacity (max.) 260 kg
Number of T-slots 5 Pieces
T-slot (width x spacing) 14×63 mm
Travels
Travel X-axis 1.000 mm
Travel Y-axis 245 mm
Travel Z-axis 450 mm
Horizontal spindle
Spindle speed (horizontal) (12) 40 – 1.300 1/min
Spindle mount ISO 40
Horizontal spindle-to-table surface distance 20 – 470 mm

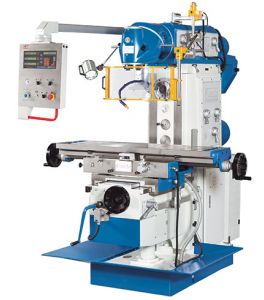

Universal Milling Machines UWF 5
Details
Overview Specs
Technical Data
Working area
Table dimensions 1.325×360 mm
Table load capacity (max.) 500 kg
Number of T-slots 3 Pieces
T-slot (width x spacing) 18×80 mm
Travels
Travel X-axis 750 mm
Travel Y-axis 280 mm
Travel Z-axis 390 mm
Milling Head
Speed range (12) 60 – 1.750 1/min
Spindle mount ISO 50
Swivel angle 360°
Upper beam travel 550 mm
Spindle center-to-table distance 175 – 565 mm

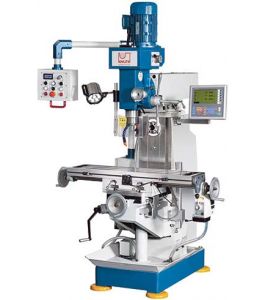

Universal Milling Machines VHF 1.1
Details
Overview Specs
Technical Data
Working area
Drilling capacity 25 mm
Milling diameter in steel (max.) 18 mm
Table set up area 1.000×240 mm
Table load capacity (max.) 150 kg
Travels
Travel X-axis 535 mm
Travel Y-axis 160 mm
Travel Z-axis 320 mm
Vertical milling head
Spindle speed (vertical) 100 – 2.000 1/min
Spindle mount ISO 40
Quill stroke 120 mm
Throat 200 – 700 mm
Spindle nose-to-table surface distance 65 – 385 mm

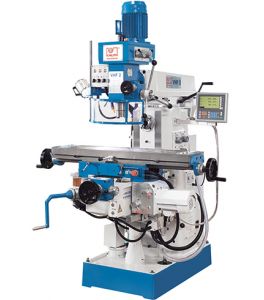

Universal Milling Machines VHF 2
Details
Overview Specs
Technical Data
Working area
Drilling capacity in steel 30 mm
Max. end mill diameter 25 mm
Tapping capacity, steel M 16
Max. end face mill diameter 100 mm
Table set up area 1.120×260 mm
Travels
Travel X-axis 600 mm
Travel Y-axis 270 mm
Travel Z-axis 300 mm
Vertical milling head
Spindle speed (vertical) (8) 115 – 1.750 1/min
Spindle mount ISO 40
Quill stroke 120 mm
Throat 160 – 610 mm
Spindle nose-to-table surface distance 60 – 360 mm

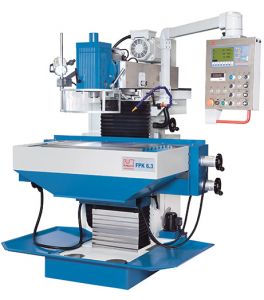

Toolroom Milling Machines FPK 4.3 • FPK 6.3
Details
Overview Specs
Technical Data
FPK 4.3 FPK 6.3
Working area
Table dimensions 400×800 mm 450×850 mm
Vertical table 225×1.020 mm 250×1.190 mm
Table load capacity (max.) 200 kg 300 kg
Number of T-slots 6 Pieces 7 Pieces
T-slot (width x spacing) 14×63 mm
T-slots, vertical table (number) 3 Pieces
T-slots, vertical table (width x spacing) 14×63 mm
Travels
Travel X-axis 500 mm 600 mm
Travel Y-axis 400 mm 450 mm
Travel Z-axis 400 mm 450 mm
Vertical Milling Spindle
Travel pinole 60 mm 100 mm
Spindle center – column (min.) 165 mm
Spindle center – column (max.) 665 mm

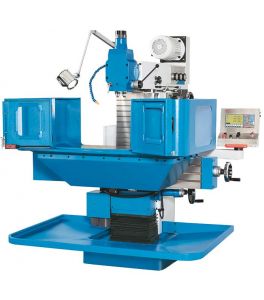

Toolroom Milling Machines FPK 6.2
Details
Overview Specs
Technical Data
Working area
Table dimensions 500×950 mm
Vertical table 300×1.250 mm
Table load capacity (max.) 300 kg
T-slots (number/width/spacing) 7x14x63 mm
T-slots, vertical table (number x width x spacing) 3x14x63 mm
Travels
Travel X-axis 600 mm
Travel Y-axis 500 mm
Travel Z-axis 400 mm

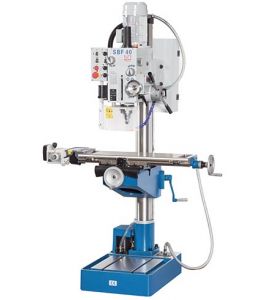

Drilling-Milling Machines SBF 40 TV 1000
Details
Overview Specs
Technical Data
Working area
Table set up area 730×210 mm
Table load capacity (max.) 100 kg
Number of table T-slots 3 Pieces
T-slot table (width x spacing) 14×63 mm
T-slot foot (qty) 2 Pieces
T-slot foot (width x spacing) 14×200 mm
Quill stroke 120 mm
Throat 278 mm
Column diameter 115 mm
Spindle nose-to-table surface distance 600 mm
Spindle nose-to-foot distance 1.180 mm
Drilling capacity in steel / ST37 40 mm
Head swivel range ± 45°
Tapping capacity, steel (ST 37) M16

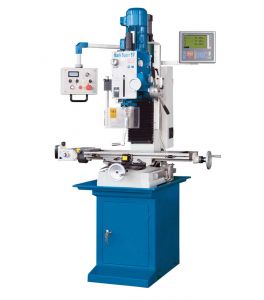

Drilling-Milling Machines Mark Super
Details
Overview Specs
Technical Data
Mark Super S Mark Super SV
Working area
Table dimensions 800×240 mm
Drilling capacity in steel 32 mm 25 mm
Shaft milling 32 mm 25 mm
Head elevation 350 mm 380 mm
Number of table T-slots 3 Pieces
T-slot table (width x spacing) 14×80 mm
Travels
Travel X-axis manual / autom. 560 / 480 mm
Travel Y-axis 190 mm
Vertical milling head
Spindle mount MT 4 MK 4
Quill stroke 120 mm
Quill diameter 75 mm
Spindle nose-to-table distance 460 mm 450 mm
Throat 258 mm
Head swivel range ± 45°

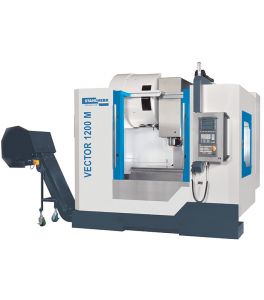

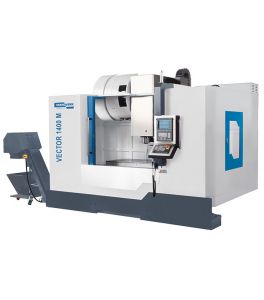

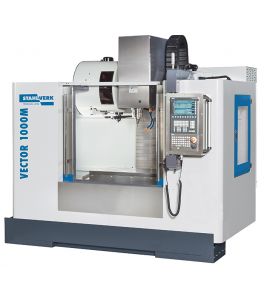

C-Frame Vertical Machining Centers Vector M
Details
Overview Specs
Technical Data
| VECTOR 850 M SI | VECTOR 650 M SI | VECTOR 650 M HDH | VECTOR 850 M HDH | VECTOR 1000 M HDH | VECTOR 1000 M SI | |
| Working area | ||||||
| Table dimensions | 1.000×550 mm | 800×550 mm | 800×550 mm | 1.000×550 mm | 1.100×550 mm | 1.100×550 mm |
| Table load capacity | 800 kg | 600 kg | 600 kg | 800 kg | 800 kg | 800 kg |
| Spindle nose-to-table surface distance | 150 – 700 mm | |||||
| Spindle center – column | 520 mm | |||||
| Travels | ||||||
| Travel X-axis | 850 mm | 650 mm | 650 mm | 850 mm | 1.000 mm | 1.000 mm |
| Travel Y-axis | 550 mm | |||||
| Travel Z-axis | 550 mm | |||||
| Guideway | — | Roller | Roller | Roller | Roller | Roller |
| Headstock | ||||||
| Spindle speed | 10.000 1/min | |||||
| Spindle mount | BT 40 | |||||
| Torque, constant | 45 Nm | 45 Nm | 63,7 Nm | 63,7 Nm | 63,7 Nm | 45 Nm |
| Spindle bearing | 7012 x 4 | |||||

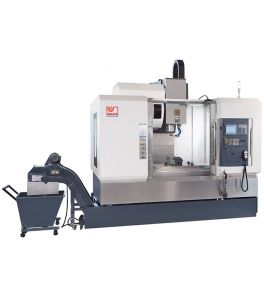

C-Frame Vertical Machining Centers VMC1056
Details
Overview Specs
Technical Data
Working area
Table dimensions 550×1.100 mm
Table load capacity 750 kg
Spindle nose-to-table surface distance 190 – 750 mm
Spindle center-to-stand distance 610 mm
Number of T-slots 5 Pieces
T-slot (width x spacing) 18×100 mm
Tool weight max. 7 kg
Travels
Travel X-axis 1.000 mm
Travel Y-axis 560 mm
Travel Z-axis 560 mm
Headstock
Spindle speed 10.000 1/min
Spindle mount BT 40
Spindle diameter 150 mm
C-Frame Vertical Machining Centers Vector 1300 • 1400 M
Details
Overview Specs
Technical Data
| VECTOR 1300 M SI | VECTOR 1400 M SI | VECTOR 1300 M HDH | VECTOR 1400 M HDH | |
| Working area | ||||
| Table dimensions | 1.400×700 mm | 1.500×700 mm | 1.400×700 mm | 1.500×700 mm |
| Table load capacity | 1.700 kg | 1.900 kg | 1.700 kg | 1.900 kg |
| Tool weight max. | 7 kg | |||
| Spindle nose-to-table surface distance | 150 – 850 mm | |||
| Number of T-slots | 6 Pieces | |||
| T-slot (width x spacing) | 18×100 mm | |||
| Travels | ||||
| Travel X-axis | 1.300 mm | 1.400 mm | 1.300 mm | 1.400 mm |
| Travel Y-axis | 720 mm | |||
| Travel Z-axis | 700 mm | |||
| Headstock | ||||
| Spindle speed | 10.000 1/min | |||
| Spindle mount | BT 40 | |||
C-Frame Vertical Machining Centers VECTOR 1200 M
Details
Overview Specs
Technical Data
| VECTOR 1200 M SI | VECTOR 1200 M HDH | |
| Working area | ||
| Table dimensions | 1.300×600 mm | |
| Table load capacity | 1.200 kg | |
| Tool weight max. | 7 kg | |
| Spindle nose-to-table surface distance | 150 – 750 mm | |
| Spindle center-to-stand distance | 600 mm | |
| Number of T-slots | 5 Pieces | |
| T-slot (width x spacing) | 18×100 mm | |
| Travels | ||
| Travel X-axis | 1.220 mm | |
| Travel Y-axis | 600 mm | |
| Travel Z-axis | 600 mm | |
| Headstock | ||
| Spindle speed | 10.000 1/min | |
| Spindle mount | BT 40 | |
| Rapid feed | ||
| X-axis rapid feed | 36 m/min | |
| Y-axis rapid feed | 36 m/min | |
| Z-axis rapid feed | 36 m/min | |

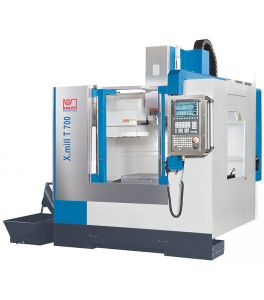

C-Frame Vertical Machining Centers X.mill T
Details
Overview Specs
Technical Data
| X.mill T 700 SI | X.mill T 800 SI | X.mill T 1000 SI | X.mill T 700 FA | X.mill T 800 FA | X.mill T 1000 FA | X.mill T 700 HDH | X.mill T 800 HDH | X.mill T 1000 HDH | |
| Working area | |||||||||
| Table dimensions | 900×450 mm | 900×550 mm | 1.100×550 mm | 900×450 mm | 900×550 mm | 1.100×550 mm | 900×450 mm | 900×550 mm | 1.100×550 mm |
| Table load capacity | 600 kg | 800 kg | 800 kg | 600 kg | 800 kg | 800 kg | 600 kg | 800 kg | 800 kg |
| Spindle axis-to-table surface distance | 110 – 660 mm | 110 – 660 mm | 150 – 700 mm | 110 – 660 mm | 110 – 660 mm | 150 – 700 mm | 110 – 660 mm | 110 – 660 mm | 150 – 700 mm |
| Spindle center-to-stand distance | 520 mm | ||||||||
| Number of T-slots | 5 Pieces | ||||||||
| T-slot (width x spacing) | 18×80 mm | 18×80 mm | 18×100 mm | 18×80 mm | 18×80 mm | 18×100 mm | 18×80 mm | 18×80 mm | 18×100 mm |
| Travels | |||||||||
| Travel X-axis | 700 mm | 800 mm | 1.000 mm | 700 mm | 800 mm | 1.000 mm | 700 mm | 800 mm | 1.000 mm |
| Travel Y-axis | 450 mm | 520 mm | 550 mm | 450 mm | 520 mm | 550 mm | 450 mm | 520 mm | 550 mm |
| Travel Z-axis | 550 mm | ||||||||
| Headstock | |||||||||
| Spindle speed | 10.000 1/min | ||||||||
| Spindle mount | BT 40 | ||||||||
| Torque, constant | 45 Nm | 45 Nm | 63,7 Nm | — | — | — | — | — | — |
| Spindle torque (max.) | — | — | — | 52,5 Nm | 52,5 Nm | ||||

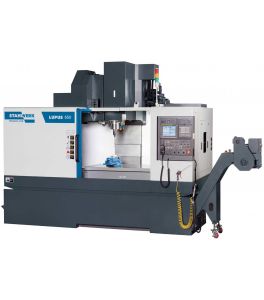

C-Frame Vertical Machining Centers Lupus 650
Details
Overview Specs
Technical Data
Working area
Table dimensions 1.400×700 mm
Table load capacity 1.500 kg
Spindle nose-to-table surface distance 150 – 790 mm
Throat 707 mm
Travels
Travel X-axis 1.280 mm
Travel Y-axis 670 mm
Travel Z-axis 640 mm
Guideway Roller
Headstock
Spindle speed 10.000 1/min
Spindle mount BBT 40
Spindle Torque cont./max. 70 / 95 Nm
Spindle bearing inner diameter 70 mm
Spindle drive method Riemenantrieb
Draw bolts PS 806

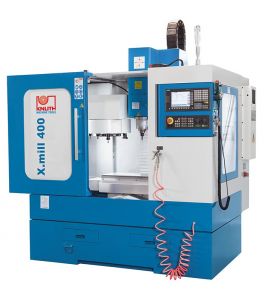

C-Frame Vertical Machining Centers X.mill 400
Details
Overview Specs
Technical Data
Working area
Table dimensions 600×300 mm
Table load capacity 150 kg
Number of T-slots 3 Pieces
T-slots, width 14 mm
T-slots, spacing 100 mm
Spindle nose-to-table surface distance 100 – 580 mm
Travels
Travel X-axis 400 mm
Travel Y-axis 230 mm
Travel Z-axis 450 mm
Headstock
Spindle speed 8.000 1/min
Spindle mount BT 40
C-Frame Vertical Machining Centers Lupus 650
Details
Overview Specs
Technical Data
Working area
Table dimensions 1.400×700 mm
Table load capacity 1.500 kg
Spindle nose-to-table surface distance 150 – 790 mm
Throat 707 mm
Travels
Travel X-axis 1.280 mm
Travel Y-axis 670 mm
Travel Z-axis 640 mm
Guideway Roller
Headstock
Spindle speed 10.000 1/min
Spindle mount BBT 40
Spindle Torque cont./max. 70 / 95 Nm
Spindle bearing inner diameter 70 mm
Spindle drive method Riemenantrieb
Draw bolts PS 806

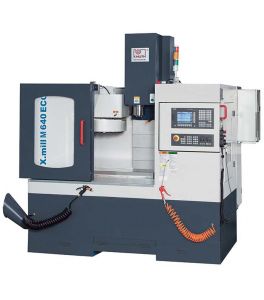

C-Frame Vertical Machining Centers X.mill M 640 ECO
Details
Overview Specs
Technical Data
X.mill M 640 ECO
Working area
Table dimensions 750×360 mm
Table load capacity 500 kg
Number of T-slots 3 Pieces
T-slots, width 18 mm
T-slots, spacing 100 mm
Spindle nose-to-table surface distance 80 – 580 mm
Travels
Travel X-axis 640 mm
Travel Y-axis 400 mm
Travel Z-axis 500 mm
Headstock
Spindle speed 10.000 1/min
Spindle thoat 430 mm
Spindle mount BT 40

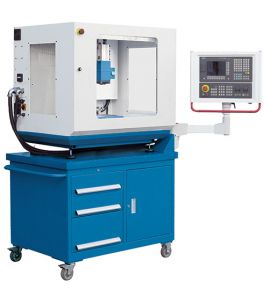

C-Frame Vertical Machining Centers LabCenter 260
Details
Overview Specs
Technical Data
Working area
Table dimensions 400×145 mm
Table load capacity 20 kg
Number of T-slots 3 Pieces
T-slots, width 12 mm
T-slots, spacing 40 mm
Spindle nose-to-table surface distance 60 – 240 mm
Throat 200 mm
Travels
Travel X-axis 260 mm
Travel Y-axis 152 mm
Travel Z-axis 180 mm

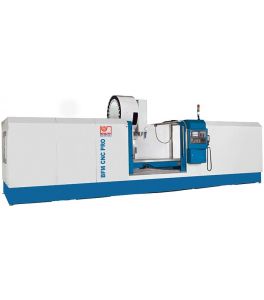

C-Frame Vertical Machining Centers BFM
Details
Overview Specs
Technical Data
| BFM 2000 Pro CNC | BFM 2500 Pro CNC | BFM 2500 UH CNC | |
| Working area | |||
| X-axis travel | 2.000 mm | 2.500 mm | 2.500 mm |
| Y axis travel | 860 mm | 860 mm | 840 mm |
| Table set up area | 762×2.336 mm | 762×2.845 mm | 762×2.845 mm |
| Table load capacity | 1.800 kg | ||
| Number of T-slots | 5 Pieces | ||
| T-slots, width | 18 mm | ||
| T-slots, spacing | 120 mm | ||
| Spindle axis-to-table surface distance | 100 – 770 mm | ||
| Workpiece weight (max.) | 1.800 kg | ||
| Travels | |||
| Travel X-axis | 2.000 mm | 2.500 mm | 2.500 mm |
| Travel Y-axis | 860 mm | 860 mm | 840 mm |
| Travel Z-axis | 700 mm | ||

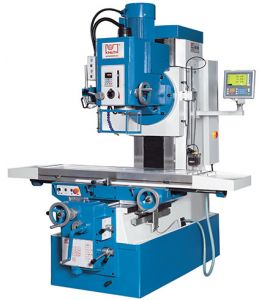

Bed-Type Milling Machines KB 1400
Details
Overview Specs
Technical Data
Working area
Spindle axis-to-table surface distance 150 – 650 mm
Number of T-slots 3 Pieces
Table set up area 1.400×400 mm
T-slots, width 18 mm
T-slots, spacing 100 mm
Speed height-adjustment (max.) 1.670 mm/min
Travels
Travel X-axis 950 mm
Travel Y-axis 400 mm
Travel Z-axis 500 mm
Vertical milling head
Spindle mount ISO 50
Throat 510 mm
Bed-Type Milling Machines Servomill KB 2100
Details
Overview Specs
Technical Data
Working area
Table set up area 2.100×500 mm
Table load capacity (max.) 1.800 kg
Spindle nose-to-table surface distance 0 – 650 mm
Number of T-slots 4 Pieces
T-slots, spacing 100 mm
T-slots, width 20 mm
Travels
Travel X-axis 1.500 mm
Travel Y-axis 650 mm
Travel Z-axis 650 mm
Vertical milling head
Speed range (infinitely variable, back gear ranges) (2) 6-300 / 300-1.500 1/min
Spindle mount ISO 50
Angular adjustment of vertical head ± 360

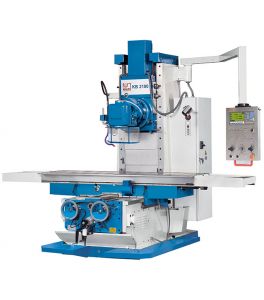

Bed-Type Milling Machines KB 2100
Details
Overview Specs
Technical Data
Working area
Table set up area 2.100×500 mm
Table load capacity (max.) 2.000 kg
Number of T-slots 4 Pieces
T-slots, spacing 20 mm
Travels
Travel X-axis 1.500 mm
Travel Y-axis 670 mm
Travel Z-axis 0 – 670 mm
Vertical milling head
Spindle speed (vertical) (12) 40 – 1.600 1/min
Spindle mount ISO 50
Throat 610 mm
Vertical spindle-to-table surface distance 0 – 670 mm
Milling head swivel range 360 deg

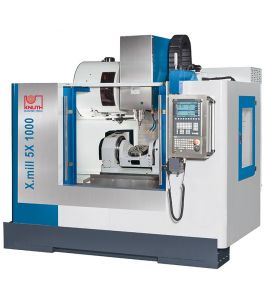

5-Axis Vertical Machining Centers X.Mill 5X
Details
Overview Specs
Technical Data
| X.mill 5X 1000 SI | X.mill 5X 1000 FA | X.mill 5X 1000 HDH | |
| Working area | |||
| Table dimensions | 1.100×550 mm | ||
| Table load capacity | 800 kg | ||
| Center height, vertical | 245 mm | ||
| Spindle axis-to-table surface distance | 150 – 700 mm | ||
| Spindle axis-to-table surface distance with rotating swivel table | 40 – 640 mm | ||
| Spindle center-to-stand distance | 520 mm | ||
| Number of T-slots | 5 Pieces | ||
| T-slot (width x spacing) | 18×100 mm | ||
| Travels | |||
| Travel X-axis | 1.000 mm | ||
| Travel X-axis with rotating swivel table | 210 mm | ||
| Travel Y-axis | 550 mm | ||
| Travel Y-axis with rotating swivel table | 550 mm | ||
| Travel Z-axis | 800 mm | ||
| Travel Z-axis with rotating swivel table | 600 mm | ||
| Headstock | |||
| Spindle speed | 10.000 1/min | ||
| Spindle mount | BT 40 | ||

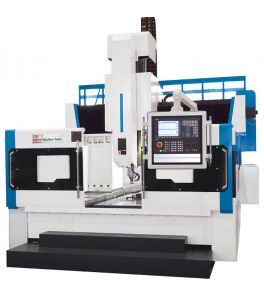

Gantry-Type Vertical Machining Centers PBZ
Details
Overview Specs
Technical Data
| PBZ 2012 CNC | PBZ 2516 CNC | PBZ 3016 CNC | PBZ 4016 CNC | PBZ 4020 CNC | |
| Working area | |||||
| Table dimensions | 2.000×1.000 mm | 2.500×1.400 mm | 3.000×1.400 mm | 4.000×1.400 mm | 4.000×1.800 mm |
| Table load capacity (max.) | 12.000 kg | 15.000 kg | 20.000 kg | 25.000 kg | 30.000 kg |
| Number of T-slots | 9 Pieces | 12 Pieces | 14 Pieces | 16 Pieces | 16 Pieces |
| T-slots, width | 22 mm | ||||
| Spindle nose-to-table surface distance | 300 – 1.000 mm | 200 – 1.000 mm | 200 – 1.000 mm | 200 – 1.000 mm | 200 – 1.200 mm |
| Workpiece width (max.) | 1.200 mm | 1.600 mm | 1.600 mm | 1.600 mm | 2.000 mm |
| Travels | |||||
| Travel X-axis | 1.200 mm | 1.600 mm | 1.600 mm | 1.600 mm | 2.000 mm |
| Travel Y-axis | 2.000 mm | 2.500 mm | 3.200 mm | 4.200 mm | 4.200 mm |
| Travel Z-axis | 700 mm | 800 mm | 800 mm | 800 mm | 1.000 mm |
| Headstock | |||||
| Spindle speed | 6.000 1/min | ||||
| Spindle mount | BT 50 | ||||

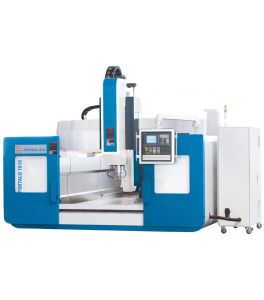

Gantry-Type Vertical Machining Centers Portalo B
Details
Overview Specs
Technical Data
| Portalo B 1810 | Portalo B 2516 | Portalo B 3016 | Portalo B 4025 | Portalo B 6025 | Portalo B 8025 | |
| Working area | ||||||
| Table dimensions | 1.900×1.000 mm | 2.500×1.600 mm | 3.000×1.600 mm | 4.000×2.100 mm | 6.000×2.100 mm | 8.000×2.100 mm |
| Table load capacity (max.) | 9.000 kg | 15.000 kg | 20.000 kg | 30.000 kg | 40.000 kg | 60.000 kg |
| T-slots, width | 18 mm | 22 mm | 22 mm | 28 mm | 28 mm | 28 mm |
| Number of T-slots | 5 Pieces | 7 Pieces | 7 Pieces | 9 Pieces | 9 Pieces | 9 Pieces |
| Spindle nose-to-table surface distance | 230 – 780 mm | 200 – 1.000 mm | 200 – 1.000 mm | 350 – 1.550 mm | 350 – 1.550 mm | 350 – 1.550 mm |
| Travels | ||||||
| Travel X-axis | 1.050 mm | 1.600 mm | 1.600 mm | 2.500 mm | 2.500 mm | 2.500 mm |
| Travel Y-axis | 2.000 mm | 2.500 mm | 3.200 mm | 4.200 mm | 6.200 mm | 8.200 mm |
| Travel Z-axis | 550 mm | 800 mm | 800 mm | 1.200 mm | 1.200 mm | 1.200 mm |
| Headstock | ||||||
| Spindle speed | 8.000 1/min | 8.000 1/min | 8.000 1/min | 6.000 1/min | 6.000 1/min | 6.000 1/min |
| Spindle mount | BT 50 | |||||

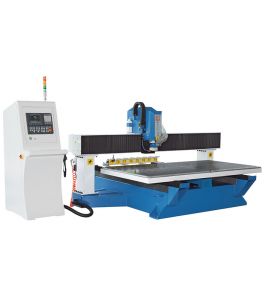

Gantry-Type Vertical Machining Centers PFG 2513
Details
Overview Specs
Technical Data
Working area
X-axis travel 2.500 mm
Y axis travel 1.300 mm
Z-axis travel 200 mm
Table set up area 2.500×1.300 mm
Headstock
Speed range 6.000 – 24.000 1/min
Spindle mount ISO 30 (DIN 69871)
Feed
Working speed axe X 1.800 mm/min
Working speed axe Y 1.800 mm/min
Rapid feed 10.000 mm/min
Tooling
Number of tool stations 8 Pieces

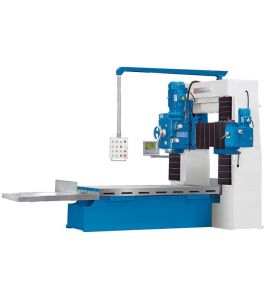

Gantry-Type Milling Machines Portamill
Details
Overview Specs
Technical Data
| Portamill 208 | Portamill 308 | |
| Working area | ||
| Table dimensions | 2.000×800 mm | 3.000×800 mm |
| Table load capacity (max.) | 2.000 kg | |
| Number of T-slots | 5 Pieces | |
| T-slot (width x spacing) | 22×160 mm | |
| Spindle nose-to-table surface distance | 0 – 800 mm | |
| Travels | ||
| Travel X-axis | 2.000 mm | 3.000 mm |
| Travel Y-axis | 1.100 mm | |
| Travel Z-axis | 800 mm | |
| Headstock | ||
| Speed range | 82 – 505 1/min | |
| Spindle torque (max.) | 790 Nm | |
| Spindle mount | — | ISO 50 |
| Rapid feed | ||
| Rapid feed X-axis | 1.400 mm/min | 1.300 mm/min |
| Rapid feed Y-axis | 890 mm/min | |
| Z axis rapid feed (gantry) | 429 mm/min | |
| Z axis rapid feed (cutter head) | 280 mm/min | |

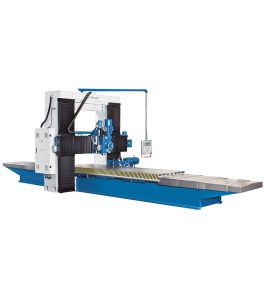

Gantry-Type Milling Machines Portamill Duo
Details
Overview Specs
Technical Data
| Portamill Duo 2012 | Portamill Duo 3012 | Portamill Duo 4012 | |
| Travels | |||
| Travel X-axis | 2.000 mm | 3.000 mm | 4.000 mm |
| Travel Y-axis | 1.400 mm | ||
| Travel Z-axis | 1.000 mm | ||
| Working area of horizontal milling spindle | |||
| Travel Y-axis | 500 mm | ||
| Travel Z-axis | 300 mm | ||
| Spindle center-to-table distance | 0 – 500 mm | ||
| Table dimensions | 2.000×1.250 mm | 3.000×1.250 mm | 4.000×1.250 mm |
| Table load capacity (max.) | 3.000 kg | 4.000 kg | 6.000 kg |
| Number of T-slots | 7 Pieces | ||
| T-slots (width x spacing) | 28×200 mm | ||
| Horizontal spindle | |||
| Spindle speed (horizontal) | 82 – 505 1/min | ||
| Feed Y-axis | 50, 265, 730 mm/min | ||
| Rapid feed Z-axis | 280 mm/min | ||

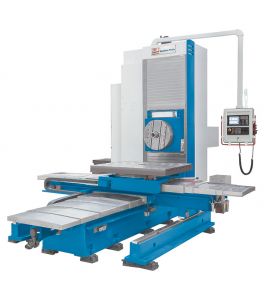

CNC Milling and Boring Machines BO T CNC 110
Details
Overview Specs
Technical Data
| BO T 110 CNC | BO T 110 L CNC | |
| Working area | ||
| Drilling capacity | 50 mm | |
| Counterbore diameter (max.) | 240 mm | |
| Facing slide working diameter (max.) | 800 mm | |
| Table set up area | 1.320×1.010 mm | |
| Table load capacity | 5.000 kg | |
| Spindle center-to-table distance | 5 – 905 mm | |
| Number of T-slots | 7 Pieces | |
| T-slots, width | 22 mm | |
| T-slots, spacing | 125 mm | |
| Table rotation range | 4 x 90° | |
| Travels | ||
| Travel X-axis | 1.200 mm | 1.800 mm |
| Travel Y-axis | 900 mm | 1.200 mm |
| Travel Z-axis | 1.300 mm | |
| Travel W-axis | 550 mm | |
| Facing slide travel | 125 mm | |

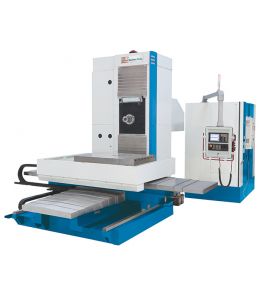

CNC Milling and Boring Machines BO T CNC 130
Details
Overview Specs
Technical Data
| BO T 130 CNC | BO T 130 L CNC | |
| Working area | ||
| Drilling capacity | 50 mm | |
| Counterbore diameter (max.) | 250 mm | |
| Table set up area | 1.350×1.000 mm | |
| Table load capacity | 5.000 kg | |
| Spindle center-to-table distance | 0 – 1.200 mm | |
| Number of T-slots | 7 Pieces | |
| T-slots, width | 22 mm | |
| T-slots, spacing | 125 mm | |
| Table indexing | 5 deg | |
| Travels | ||
| Travel X-axis | 1.300 mm | 1.600 mm |
| Travel Y-axis | 1.200 mm | |
| Travel Z-axis | 1.200 mm | |
| Travel W-axis | 550 mm | |

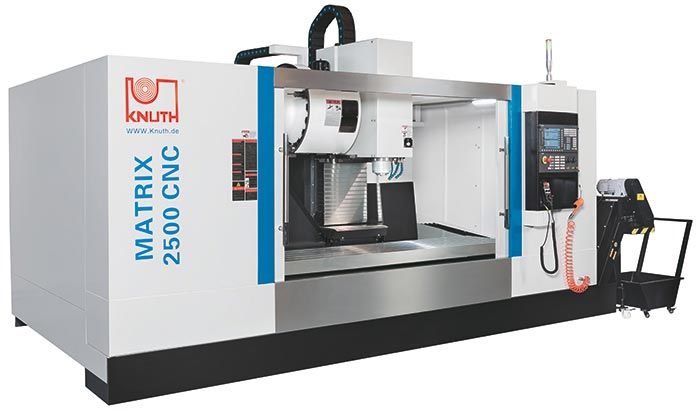

Moving Column Vertical Machining Centers Matrix
Details
Overview Specs
Technical Data
| Matrix 2500 CNC | Matrix 2500 CNC (Siemens 828D Basic) | |
| Working area | ||
| Table dimensions | 2.500×550 mm | |
| Table load capacity | 3.500 kg | |
| Spindle nose-to-table surface distance | 200 – 802 mm | |
| Spindle center-to-stand distance | 620 mm | |
| Number of T-slots | 5 Pieces | |
| T-slots, width | 18 mm | |
| T-slots, spacing | 100 mm | |
| Travels | ||
| Travel X-axis | 2.500 mm | |
| Travel Y-axis | 550 mm | |
| Travel Z-axis | 550 mm | |
| Headstock | ||
| Spindle speed | 8.000 1/min | |
| Spindle mount | BT40 | |
| Torque, constant | 75,5 Nm | |
Conventional Milling and Boring Machines BO 130
Details
Overview Specs
Technical Data
Working area
Drilling capacity 60 mm
Table set up area 1.600×1.800 mm
Table load capacity 10.000 kg
Spindle axis-to-table surface distance 0 – 1.800 mm
Rotation speed of rotary table 1,2 1/min
Travels
Travel X 2.000 mm
Travel Y 1.800 mm
Travel Z 1.500 mm
Travel W 900 mm
Facing slide travel 250 mm

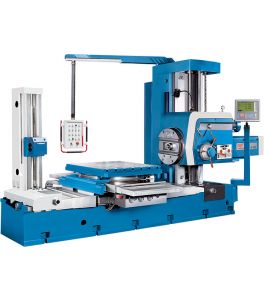

Conventional Milling and Boring Machines BO 110
Details
Overview Specs
Technical Data
Working area
Drilling capacity 50 mm
Table set up area 1.100×960 mm
Table load capacity 2.500 kg
Spindle axis-to-table surface distance 0 – 900 mm
Rotation speed of rotary table 1 1/min
Travels
Travel X 900 mm
Travel Y 900 mm
Travel Z 900 mm
Travel W 600 mm
Facing slide travel 180 mm
Conventional Milling and Boring Machines BO 130
Details
Overview Specs
Technical Data
Working area
Drilling capacity 60 mm
Table set up area 1.600×1.800 mm
Table load capacity 10.000 kg
Spindle axis-to-table surface distance 0 – 1.800 mm
Rotation speed of rotary table 1,2 1/min
Travels
Travel X 2.000 mm
Travel Y 1.800 mm
Travel Z 1.500 mm
Travel W 900 mm
Facing slide travel 250 mm

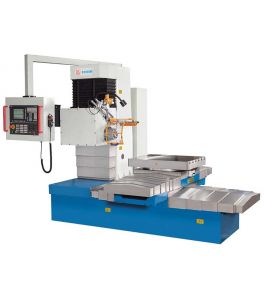

CNC Milling and Boring Machines BO 90 CNC
Details
Overview Specs
Technical Data
Working area
Drilling capacity 30 mm
Finish bore 200 mm
Milling capacity 55 cm³/min
Table load capacity 1.000 kg
Table dimensions 630×800 mm
Number of T-slots 6 Pieces
T-slots, width 18 mm
Spindle axis-to-table surface distance 570 mm
Table rotation range (5° units) 360
Travels
Travel X-axis 700 mm
Travel Y-axis 510 mm
Travel Z-axis 800 mm
