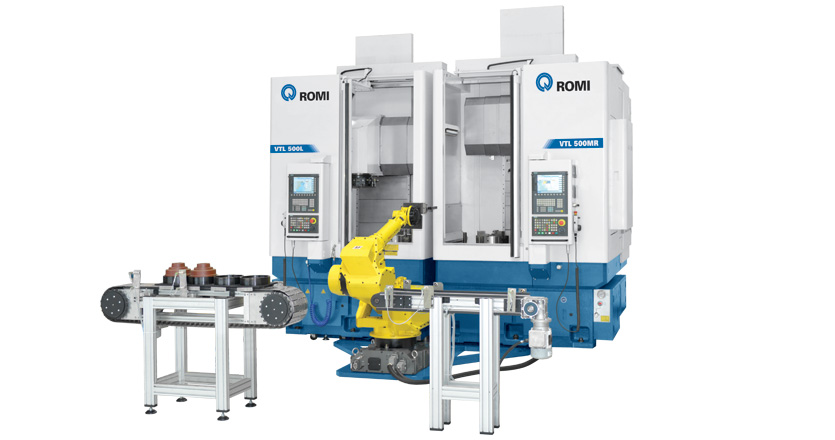

Vertical Turning Centers

Details

ROMI VTL 500R / 500L ROMI VTL 500MR / 500ML ROMI VTL 700R / 700L ROMI VTL 700MR / 700ML
Max. diameter allowed mm (in) 740 (29) 740 (29) 750 (30) 750 (30)
Max. turning diameter mm (in) 500 (20) 500 (20) 700 (28) 700 (28)
Max. turning diameter (recommended) mm (in) 390 (15,4) 390 (15,4) 470 (18,5) 470 (18,5)
Max. turning height mm (in) 668 (26) 620 (24) 627 (25) 635 (25)
Max. height allowed mm (in) 668 (26) 620 (24) 627 (25) 635 (25)
Spindle ASA A2-8” A2-8” A2-11” A2-11”
Speed ranges rpm 2 to 2,500 2 to 2,500 2 to 2,000 2 to 2,000
Rapid traverses (X/Z axes) m/min (in/min) 30 (1,181) 30 (1,181) 20 (787) 20 (787)
Number of tools / stations 12 12 12 12
Speed ranges for driven tool rpm 4 to 4,000 4 to 4,000
Main motor (S2 – 30 min. rating) hp / kW 28 / 21 28 / 21 46 / 34 46 / 34
