Sawing

Details

Overview Specs


Technical Data

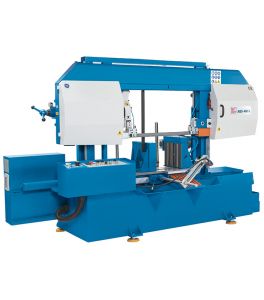

ABS 460 L ABS 380 L ABS 325 L ABS 560 L
Cutting Capacities
Cutting capacity 0° (flat) 470×460 mm 430×380 mm 350×325 mm 570×560 mm
Cutting capacity 0° (round) 460 mm 380 mm 325 mm 560 mm
Cutting capacity 0° (square) 460 mm 380 mm 325 mm 560 mm
Cutting speed infinitely variable 20 – 100 m/min
Stop length 500 mm
Aaccuracy of the feeding 0,5 mm
Drive capacity
Motor rating main drive 4 kW 3 kW 2,2 kW 4 kW
Motor rating hydraulic pump 0,55 kW 0,55 kW 0,55 kW 1,1 kW
Motor rating feed 0,25 kW 0,25 kW 0,25 kW 0,55 kW
Measures and weights
Overall dimensions (length x width x height) 3,1x1x1,8 m 2,9×0,95×1,66 m 2,45×0,9×1,5 m 3,5×1,05×2,05 m
Weight 1.500 kg 1.250 kg 880 kg 2.100 kg
Blade dimensions 5.200x41x1,3 mm 4.800x34x1,1 mm 4.160x34x1,1 mm 6.000x41x1,3 mm

Details

Overview Specs


Technical Data

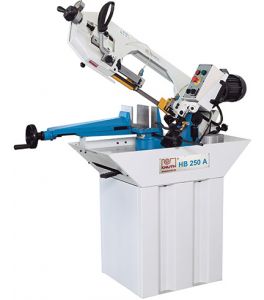

HB 210 A HB 150 HB 250 A
Cutting Capacities
Cutting capacity 0° (round) 170 mm 150 mm 225 mm
Cutting capacity 0° (flat) 140×200 mm 120×200 mm 245×190 mm
Cutting capacity 45° (flat) 95×130 mm 90×130 mm 210×155 mm
Cutting capacity 45° (round) 125 mm 120 mm 155 mm
Belt speed 40 / 80 m/min 40 / 80 m/min 40 / 90 m/min
Cutting capacity 60° – round 90 mm
Drive capacity
Main motor rating 0,75 kW 0,6/0,85 kW 1,1 kW
Measures and weights
Overall dimensions (length x width x height) 1,3×0,58×0,88 m 1,16×0,71×0,79 m 1,36×0,58×0,9 m
Weight 152 kg 212 kg 185 kg

Details

Overview Specs


Technical Data

SBS 255 SBS 235 SBS 355
Cutting Capacities
Cutting capacity 0° (round) 255 mm 235 mm 355 mm
Cutting capacity 0° (square) 230 mm 230 mm 300 mm
Cutting capacity 0° (flat) 315×230 mm 200×270 mm 300×530 mm
Cutting capacity 45° (square) L 160 mm 185 mm 270 mm
Cutting capacity 45° (flat) L 160×160 mm 140×140 mm 270×270 mm
Cutting capacity 45° (round) L 160 mm 200 mm 300 mm
Cutting capacity 45° (square) R 195 mm 185 mm 290 mm
Cutting capacity 45° (round) R 195 mm 200 mm 355 mm
Cutting capacity 45° (flat) R 195×230 mm 180×220 mm 290×360 mm
Cutting capacity 60° R (round) 115 mm 120 mm 240 mm
Cutting capacity 60° R (square) 115 mm 120 mm 170 mm
Cutting capacity 60° R (flat) 115×160 mm 120×120 mm 170×240 mm
Cutting speed 45 / 90 m/min 45 / 90 m/min 20 – 80 (infinitely var.) m/min
Drive capacity
Motor rating main drive 1,5 kW 1,1 kW 2,2 kW
Supply voltage 400 V

Details

Overview Specs


Technical Data

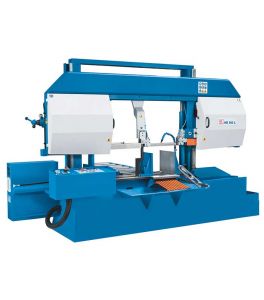

HB 380 L HB 460 L HB 560 L HB 810 L HB 1020 L
Cutting Capacities
Cutting capacity 0° (round) 380 mm 460 mm 560 mm 810 mm 1.020 mm
Cutting capacity 0° (square) 380 mm 460 mm 560 mm 810 mm 1.020 mm
Cutting capacity 0° (flat) 520×380 mm 650×460 mm 750×550 mm 810×850 mm 1.020×1.020 mm
Cutting capacity 45° (round) 300 mm 380 mm 410 mm 810 mm 675 mm
Cutting capacity 45° (square) 300 mm 380 mm 410 mm 810 mm 675 mm
Cutting capacity 45° (flat) 300×380 mm 380×460 mm 410×550 mm 480×850 mm 675×1.020 mm
Cutting speed 20 – 100 m/min
Drive capacity
Motor rating main drive 3 kW 4 kW 4 kW 4 kW 7,5 kW
Motor rating hydraulic pump 0,55 kW 0,55 kW 1,1 kW 1,5 kW 2,2 kW
Motor rating coolant pump 0,12 kW

Details

Overview Specs


Technical Data

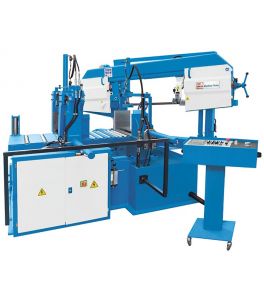

ABS 325 H NC ABS 360 H NC ABS 440 H NC ABS 540 H NC
Cutting Capacities
Feed per scale division X-axis 500 mm
Cutting speed 20 – 100 m/min
Cutting capacity 0° (round) 325 mm 360 mm 450 mm 540 mm
Cutting capacity 0° (flat) 400×315 mm 610×360 mm 610×425 mm 670×540 mm
Cutting capacity 0° (square) 315 mm 360 mm 425 mm 540 mm
Cutting capacity 30° (round) 325 mm 360 mm 450 mm 540 mm
Cutting capacity 30° (flat) 380×315 mm 590×360 mm 560×425 mm 670×540 mm
Cutting capacity 30° (square) 315 mm 360 mm 425 mm 540 mm
Cutting capacity 45° (round) 300 mm 360 mm 430 mm 510 mm
Cutting capacity 45° (flat) 300×315 mm 450×360 mm 430×425 mm 450×540 mm
Cutting capacity 45° (square) 300 mm 360 mm 425 mm 450 mm
Cutting capacity in semi-automatic mode
Cutting capacity 60° (round) 200 mm 325 mm 320 mm 270 mm
Cutting capacity 60° (flat) 200×315 mm 280×360 mm 260×425 mm 250×540 mm
Cutting capacity 60° (square) 200 mm 290 mm 290 mm 250 mm

Details

Overview Specs


Technical Data

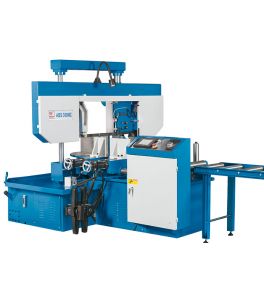

ABS 300 NC ABS 400 NC
Cutting Capacities
Feed per scale division X-axis 400 mm
Cutting speed 20 – 90 m/min 20 – 80 m/min
Cutting capacity 0° (round) 300 mm 400 mm
Cutting capacity 0° (flat) 360×300 mm 500×400 mm
Cutting capacity 0° (square) 300 mm 400 mm
Cutting capacity 30° (round) 300 mm 400 mm
Cutting capacity 30° (flat) 300×300 mm 400×400 mm
Cutting capacity 30° (square) 300 mm 400 mm
Cutting capacity 45° (round) 240 mm 350 mm
Cutting capacity 45° (flat) 240×300 mm 350×400 mm
Cutting capacity 45° (square) 240 mm 350 mm
Cutting capacity in semi-automatic mode
Cutting capacity 60° (round) 240 mm
Cutting capacity 60° (flat) 240×300 mm
Cutting capacity 60° (square) 240 mm

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting speed  27,45,69 m/min

Cutting capacity 0° (round)    280 mm

Cutting capacity 0° (square)   280 mm

Cutting capacity 0° (flat)        280×280 mm

Drive capacity

Motor rating main drive         3 kW

Motor rating hydraulic pump 0,75 kW

Motor rating coolant pump     0,045 kW

Measures and weights

Blade dimensions       3.505x27x0,9 mm

Overall dimensions (length x width x height)            2,24×1,8×1,63 m

Weight 1.010 kg

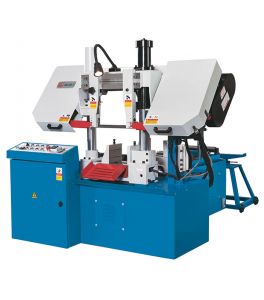

Part No.           152828

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting speed  27, 45, 69 m/min

Working height           685 mm

Cutting capacity 0° (round)    280 mm

Cutting capacity 0° (square)   280 mm

Cutting capacity 0° (flat)        320×280 mm

Cutting capacity 30° (round)  260 mm

Cutting capacity 30° (square) 260 mm

Cutting capacity 30° (flat)      260×280 mm

Cutting capacity 45° (round)  170 mm

Cutting capacity 45° (square) 170 mm

Cutting capacity 45° (flat)      170×280 mm

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting speed  27, 45, 69 m/min

Working height           685 mm

Cutting capacity 0° (round)    280 mm

Cutting capacity 0° (square)   280 mm

Cutting capacity 0° (flat)        320×280 mm

Cutting capacity 30° (round)  260 mm

Cutting capacity 30° (square) 260 mm

Cutting capacity 30° (flat)      260×280 mm

Cutting capacity 45° (round)  170 mm

Cutting capacity 45° (square) 170 mm

Cutting capacity 45° (flat)      170×280 mm

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting speed  0 – 100 m/min

Feed per scale division X-axis           600 mm

Cutting capacity 0° (round)    600 mm

Cutting capacity 0° (square)   600 mm

Cutting capacity 0° (flat)        850×600 mm

Cutting capacity 45° (round)  400 mm

Cutting capacity 45° (square) 400 mm

Cutting capacity 45° (flat)      400×600 mm

Drive capacity

Motor rating main drive         5,5 kW

Motor rating hydraulic pump 1,5 kW

Motor rating coolant pump     0,09 kW

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting speed  23 – 95 m/min

Feed per scale division X-axis           650 mm

Working height           850 mm

Cutting capacity 0° (round)    460 mm

Cutting capacity 0° (square)   350 mm

Cutting capacity 0° (flat)        650×350 mm

Cutting capacity 30° (round)  460 mm

Cutting capacity 30° (square) 350 mm

Cutting capacity 30° (flat)      580×350 mm

Cutting capacity 45° (round)  460 mm

Cutting capacity 45° (square) 350 mm

Cutting capacity 45° (flat)      460×350 mm

Cutting capacity 60° (round)  310 mm

Cutting capacity 60° (square) 310 mm

Cutting capacity 60° (flat)      310×350 mm

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting speed  30, 50, 75, 90 m/min

Cutting capacity 0° (round)    300 mm

Cutting capacity 0° (square)   300 mm

Cutting capacity 0° (flat)        500×300 mm

Drive capacity

Motor rating main drive         3 kW

Motor rating hydraulic pump 0,75 kW

Motor rating coolant pump     0,045 kW

Measures and weights

Blade dimensions       4.180x34x1,1 mm

Overall dimensions (length x width x height)            2,05×1,17×1,45 m

Weight 1.085 kg

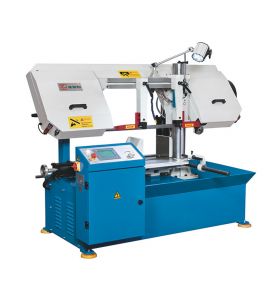

Part No.           152823

Details

Overview Specs


Technical Data

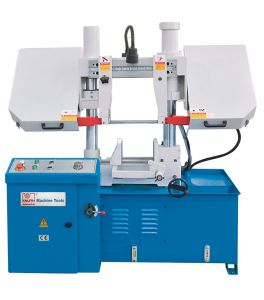

HB 280 T HB 400 T
Cutting Capacities
Cutting speed 27, 45, 69 m/min 36, 56 m/min
Cutting capacity 0° (round) 280 mm 400 mm
Cutting capacity 0° (square) 280 mm 400 mm
Cutting capacity 0° (flat) 280×280 mm 400×400 mm
Drive capacity
Main motor rating 3 kW 3/4 kW
Motor rating hydraulic pump 0,55 kW 0,75 kW
Motor rating coolant pump 0,045 kW
Measures and weights
Blade dimensions 3.505x27x0,9 mm 5.000x41x1,3 mm
Overall dimensions (length x width x height) 2,18×1,31×1,61 m 2,7×1,35×2,15 m
Weight 695 kg 1.325 kg

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting speed  40/80 m/min

Feed per scale division X-axis           500 mm

Working height           850 mm

Cutting capacity 0° (round)    330 mm

Cutting capacity 0° (square)   250 mm

Cutting capacity 0° (flat)        460×250 mm

Cutting capacity 30° (round)  310 mm

Cutting capacity 30° (square) 250 mm

Cutting capacity 30° (flat)      375×250 mm

Cutting capacity 45° (round)  305 mm

Cutting capacity 45° (square) 250 mm

Cutting capacity 45° (flat)      305×250 mm

Cutting capacity 60° (round)  205 mm

Cutting capacity 60° (square) 205 mm

Cutting capacity 60° (flat)      205×250 mm

Details

Overview Specs


Technical Data

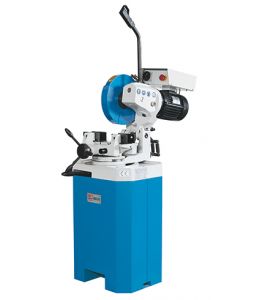

KKS 315 T KKS 250 T KKS 275 T KKS 350 T
Working area
Max. saw blade diameter 315 mm 250 mm 275 mm 350 mm
Shaft diameter 40 mm 32 mm 32 mm 32 mm
Speed 18/36 1/min 42 1/min 42 1/min 18/36 1/min
Width of vise 145 mm 100 mm 100 mm 145 mm
Working height 960 mm
Cutting Capacities
Cutting capacity 0° (round) 100 mm 60 mm 70 mm 120 mm
Cutting capacity 0° (square) 100 mm 55 mm 65 mm 110 mm
Cutting capacity 0° (flat) 140×90 mm 75×45 mm 90×45 mm 140×100 mm
Cutting capacity 45° (round) L 90 mm 55 mm 65 mm 105 mm
Cutting capacity 45° (square) L 90 mm 50 mm 60 mm 100 mm
Cutting capacity 45° (round) R 90 mm 55 mm 65 mm 105 mm
Cutting capacity 45° (flat) L 100×90 mm 55×45 mm 70×45 mm 100×100 mm
Cutting capacity 45° (square) R 90 mm 50 mm 60 mm 100 mm
Cutting capacity 45° (flat) R 100×90 mm 55×45 mm 70×45 mm 100×100 mm

Details

Overview Specs


Technical Data

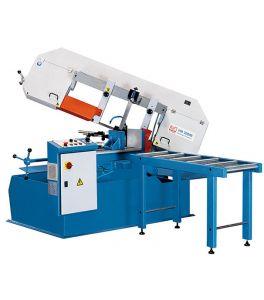

HB 280 B HB 320 BS
Cutting Capacities
Cutting capacity 0° (round) 280 mm 320 mm
Cutting capacity 0° (square) 280 mm 320 mm
Cutting capacity 0° (flat) 350×200 mm 610×320 mm
Cutting capacity 45° (round) 240 mm 320 mm
Cutting capacity 45° (square) 210 mm 320 mm
Cutting capacity 45° (flat) 240×180 mm 355×320 mm
Cutting capacity 30° – round – mm
Cutting capacity 30° – square – mm
Cutting capacity 30° – flat – mm
Cutting speed infinitely variable 20 – 100 m/min
Cutting capacity 60° (round) 260 mm
Cutting capacity 60° (square) 225 mm
Cutting capacity 60° (flat) 280×200 mm

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting capacity 0° (round)    320 mm

Cutting capacity 0° (square)   320 mm

Cutting capacity 0° (flat)        610×320 mm

Cutting capacity 45° (round)  320 mm

Cutting capacity 45° (square) 320 mm

Cutting capacity 45° (flat)      355×320 mm

Cutting capacity 60° (round)  260 mm

Cutting capacity 60° (square) 225 mm

Cutting capacity 60° (flat)      280×200 mm

Cutting speed infinitely variable        20 – 100 m/min

Drive capacity

Motor rating main drive         2,2 kW

Motor rating coolant pump     0,12 kW

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting capacity 0° (round)    205 mm

Cutting capacity 0° (square)   205 mm

Cutting capacity 0° (flat)        205×215 mm

Cutting capacity 45° (square) L         115 mm

Cutting capacity 45° (round) L           135 mm

Cutting capacity 45° (flat) L   205×115 mm

Belt speed       24 / 41 / 61 / 82 m/min

Drive capacity

Motor rating main drive         1,1 kW

Measures and weights

Blade dimensions       2.360x20x0,9 mm

Overall dimensions (length x width x height)            1,23×0,65×1,32 m

Weight 190 kg

Part No.           102752

Details

Overview Specs


Technical Data

Working area

Roller guide length     1.200 mm

Feed rollers     6 Pieces

Cutting Capacities

Cutting capacity 0° (round)    320 mm

Cutting capacity 0° (square)   300 mm

Cutting capacity 0° (flat)        320×200 mm

Stop length     500 mm

Cutting speed  20 – 100 m/min

Aaccuracy of the feeding       0,5 mm

Drive capacity

Motor rating main drive         2,25 kW

Motor rating hydraulic pump 0,37 kW

Motor rating coolant pump     0,12 kW

Motor rating feed        0,25 kW

Details

Overview Specs


Technical Data

Cutting Capacities

Cutting capacity 0° (round)    205 mm

Cutting capacity 0° (square)   205 mm

Cutting capacity 0° (flat)        205×215 mm

Cutting capacity 45° (square) L         115 mm

Cutting capacity 45° (round) L           135 mm

Cutting capacity 45° (flat) L   205×115 mm

Belt speed       24 / 41 / 61 / 82 m/min

Drive capacity

Motor rating main drive         1,1 kW

Measures and weights

Blade dimensions       2.360x20x0,9 mm

Overall dimensions (length x width x height)            1,23×0,65×1,32 m

Weight 190 kg

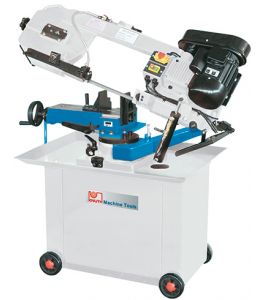

Part No.           102752

Details

Overview Specs


Technical Data

Working area

Speed  38, 19 1/min

Width of vise  145 mm

Air supply       6 bar

Air consumption         120 l/min

Cutting Capacities

Cutting capacity 0° (square)   90 mm

Cutting capacity 0° (round)    95 mm

Cutting capacity 45° (round)  90 mm

Cutting capacity 45° (square) 75 mm

Drive capacity

Main motor rating      0,75 / 1,5 kW

Measures and weights

Overall dimensions (length x width x height)            1,13×0,65×1,68 m

Weight 310 kg

Part No.           102139

Details

Overview Specs


Technical Data

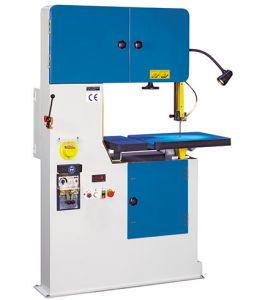

VB 410 VB 610
Working area
Table dimensions 600×500 mm 600×500 / 220×500 mm
Table height 1.000 mm 1.015 mm
Angular adj. of table 15°
Cutting Capacities
Cutting capacity height x throat 300×410 mm 340×610 mm
Cutting speed 20-85 + 120-500 m/min
Drive capacity
Motor rating main drive 1,5 kW
Blade welder capacity 2,4 kVA
Motor rating grinding 0,09 kW
Measures and weights
Blade width 3 – 16 mm
Blade length 3.365 mm 3.950 mm
Overall dimensions (length x width x height) 0,44×0,82×1,9 m 0,7×1,3×2 m
Weight 440 kg 700 kg

Details

Overview Specs


Technical Data

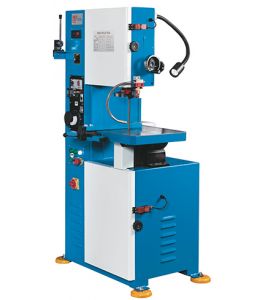

VB 500 A VB 400 A VB 300 A VB 585 A
Working area
Table dimensions 700x660x980 mm 600x550x970 mm 500x400x890 mm 700x660x1.002 mm
Table with angle adjustment (l/r) 15/30 deg 15/45 deg 15/45 deg 15/30 deg
Cutting Capacities
Cutting capacity height x throat 310×500 mm 285×400 mm 185×310 mm 336×585 mm
Cutting speed 0 – 329 m/min 0 – 257 m/min 0 – 190 m/min 0 – 340 m/min
Drive capacity
Motor rating main drive 1,5 kW 1,5 kW 0,55 kW 1,5 kW
Motor rating grinding 0,09 kW
Blade welder capacity 2,4 kVA
Measures and weights
Blade width 3 – 16 mm 3 – 15 mm 3 – 16 mm 6 – 19 mm
Blade length 3.980 – 4.050 mm 3.390 – 3.467 mm 2.855 – 2.925 mm 4.430 – 4.520 mm
Overall dimensions (length x width x height) 1,25×1,04×1,98 m 1,05×0,92×1,82 m 0,91×0,82×1,6 m 1,33×1,06×2,11 m
Weight 410 kg 315 kg 275 kg 555 kg
