CNC LATHES

Details

Overview Specs

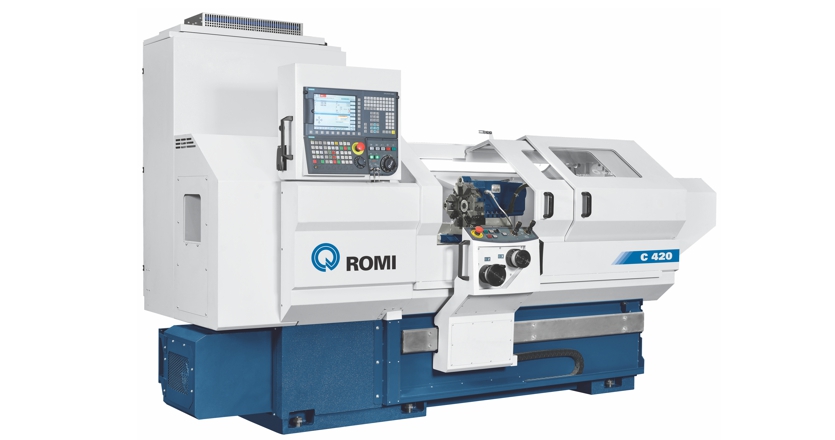

ROMI C 420 ROMI C 510 ROMI C 620 ROMI C 680 ROMI C 830 ROMI C 1000
Height of centers in (mm) 8.5 (215) 10.2 (260) 12.2 (310) 13.9 (352) 17.1 (435) 20 (510)
Distance between centers in (m) 39 (1) 59 (1.5) 39-79 (1-2) 79-118 (2-3) 118-197 (3-5) 118-197 (3-5)
Swing over bed in (mm) 17 (430) 20.5 (520) 24.5 (620) 27 (680) 33.5 (850) 40 (1,000)
Swing over cross slide in (mm) 7.85 (200) 10 (255) 13.6 (346) 17 (430) 21.6 (550) 27.5 (700)
Main spindle nose ASA A2-5″/A2-6″ A2-6” / A2-8” A2-8” A2-8“/A2-11″ A2-11”/ A2-15“ A2-15” / A2-20”
Max. spindle speeds rpm 4 to 4,000 / 3 to 3,000 3 to 3,000 / 2 to 2,200 1 to 1,800 / 1 to 1,000 1 to 1,800 1 to 1,000 / 1 to 550 1 to 550 / 1 to 400
AC main motor hp / kW 12.5 / 9 15 / 11 25 / 18.5 45 / 33.6 45 / 33.6 45 / 33.6
