Waterjet Cutting

Details

Overview Specs


Technical Data

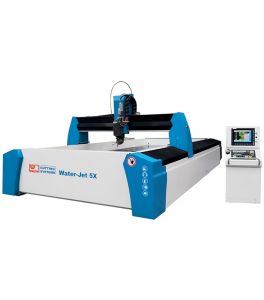

Water-Jet 5X 3015 Water-Jet 5X 3020 Water-Jet 5X 2040 Water-Jet 5X 2060 Water-Jet 5X 3040 Water-Jet 5X 3060 Water-Jet 5X 3080
Working area
Cutting capacity (2D) 3.000×1.500 mm 3.000×2.000 mm 2.000×4.000 mm 2.000×6.000 mm 3.000×4.000 mm 3.000×4.000 mm 3.000×8.000 mm
Cutting capacity 5 axes 2.550×1.050 mm 2.550×1.550 mm 1.550×3.500 mm 1.550×5.550 mm 2.550×3.550 mm 2.550×5.550 mm 2.550×7.550 mm
Table load capacity 1.500 kg/m²
Travels
Travel Z-axis 150 mm
Y-axis travel / cutting length 2D 1.550 mm 2.050 mm 4.050 mm 6.050 mm 4.050 mm 6.050 mm 8.050 mm
X-axis travel/ cutting width 2D 3.050 mm 3.050 mm 2.050 mm 2.050 mm 3.050 mm 3.050 mm 3.050 mm
Y-axis travel / cutting length 5 axes 1.050 mm 1.550 mm 3.550 mm 5.550 mm 3.550 mm 5.550 mm 7.550 mm
X-axis travel/ cutting width 5 axes 2.550 mm 2.550 mm 1.550 mm 1.550 mm 2.550 mm 2.550 mm 2.550 mm

Details

Overview Specs


Technical Data

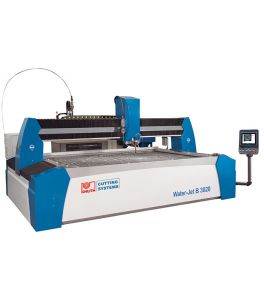

Water-Jet B 2010 Water-Jet B 3015 Water-Jet B 3020 Water-Jet B 2040 Water-Jet B 2060 Water-Jet B 3040 Water-Jet B 3060 Water-Jet B 3080
Working area
Cutting range 2.050×1.050 mm 3.050×1.550 mm 3.050×2.050 mm 2.050×4.050 mm 2.050×6.050 mm 3.050×4.050 mm 3.050×6.050 mm 3.050×8.050 mm
Table load capacity 1.500 kg/m²
Travels
Travel Z-axis 200 mm
Cutting length / Travel Y-axis 1.050 mm 1.550 mm 2.050 mm 4.050 mm 6.050 mm 4.050 mm 6.050 mm 8.050 mm
Cutting width / Travel X-axis 2.050 mm 3.050 mm 3.050 mm 2.050 mm 2.050 mm 3.050 mm 3.050 mm 3.050 mm
Rapid feed
Rapid feed X-, Y-, Z- axis 20.000 mm/min
Feed
Work feed 0 – 20.000 mm/min
