Turning Centers

Details

Overview Specs

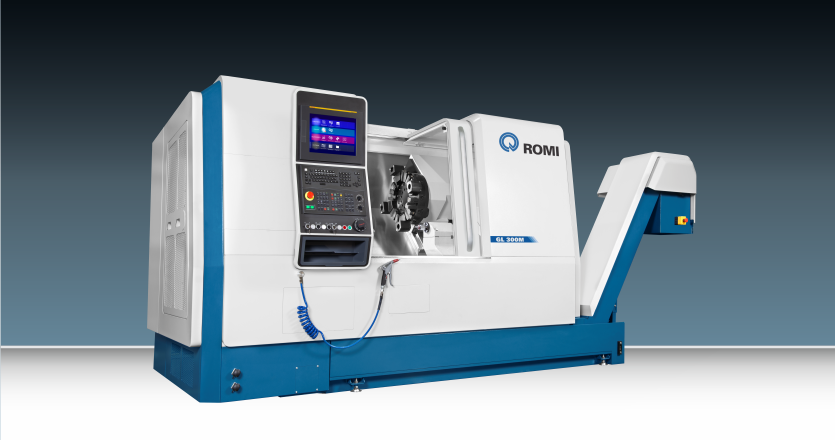

ROMI GL 250 ROMI GL 300 ROMI GL 350 ROMI GL 450
Maximum cutting diameter mm (in) T = 282 (11) M, Y and S = 250 (9.8) T = 330 (13) M, Y and S = 300 (11.8) T = 410 (16.1) M and Y = 350 (13.7) T = 490 (19.3) M and Y = 450 (17.7)
Speed range (Headstock) rpm 6,000 / 4,500 4,500 / 3,500 3,000 / 2,500 3,000 / 2,500
Spindle nose ASA A2-5” / A2-6” A2-6” / A2-8” A2-8” / A2-11” A2-8” / A2-11”
Rapid traverse – X axis m/min (in/min) 30 (1,181) 30 (1,181) 30 (1,181) 30 (1,181)
Rapid traverse – Z axis m/min (in/min) 30 (1,181) 30 (1,181) 30 (1,181) 30 (1,181)
Number of tools / stations un 12 12 12 12
AC Main motor cv / kW 19.4 / 14.3 25.2 / 18.5 34 / 25 40.8 / 30

Details

Overview Specs

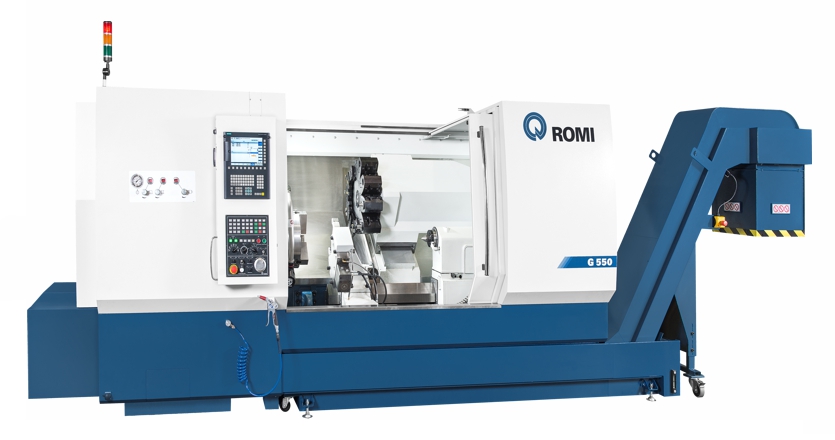

ROMI G 550 ROMI G 550M
Swing over Z axis cover mm (in) 685 (27) 685 (27)
Max. cutting diameter mm (in) 550 (22) 530 (21)
Max. cutting length (between centers) mm (in) 1,300 (51) 1,300 (51)
Travel (X axis) mm (in) 280 (11) 280 (11)
Travel (Z axis) mm (in) 1,340 (53) 1,340 (53)
HEADSTOCK
Spindle nose ASA A2-8” / A2-11” A2-8” / A2-11”
Spindle thru-hole mm (in) 104 (4,1) / 142 (5,6) 104 (4,1) / 142 (5,6)
Speed range (Direct drive) rpm 2 to 2,500 / 2 to 2,000 2 to 2,500 / 2 to 2,000
Rapid traverse (X axis) m/min (in/min) 20 (787) 20 (787)
Rapid traverse (Z axis) m / min 24 24
Number of tools/stations un 12 12
Main motor AC (30 min.) cv / kW 45.7 / 33.6 45.7 / 33.6

Details

Overview Specs

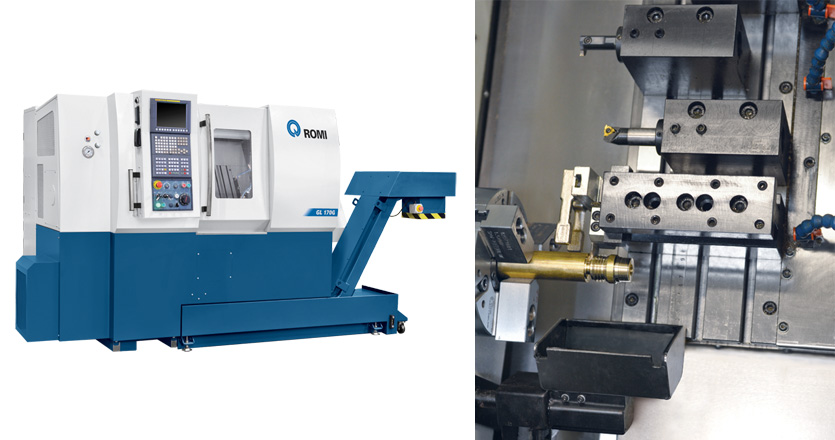

ROMI GL 170G
Speed Range rpm 6 to 6,000
Spindle nose (headstock) ASA
Speed range (headstock) rpm
Rapid traverse (X axis) m/min (in/min) 36 (1.417)
Rapid traverse (Z axis) m/min (in/min) 30 (1.181)
Number of tools/stations un Gang tool
Motor AC (left headstock) hp / kW 15/11
Motor AC (right headstock) hp / kW
