Presses

Details

Overview Specs


Technical Data

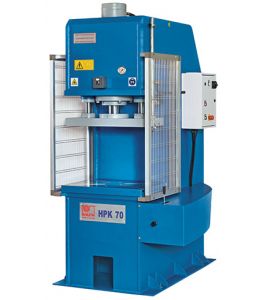

HPK 100 HPK 40 HPK 70 HPK 150
Working area
Pressure force 100 t 40 t 70 t 150 t
Table dimensions 800×600 mm 700×500 mm 700×500 mm 900×600 mm
Stroke 500 mm
Ram-plate size 700×350 mm 700×350 mm 700×350 mm 800×400 mm
Stroke speed 4 mm/s 9 mm/s 5 mm/s 3 mm/s
Rapid feed
Rapid feed 25 mm/s 26 mm/s 24 mm/s 20 mm/s
Drive capacity
Motor rating 4 kW
Measures and weights
Overall dimensions (length x width x height) 1,2×1,9×2,6 m 1×1,5×2,5 m 1×1,5×2,5 m 1,5×2,2×3 m
Weight 3.400 kg 1.500 kg 2.100 kg 5.500 kg

Details

Overview Specs


Technical Data

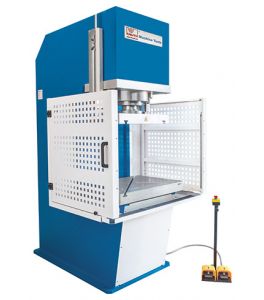

KCP 50 KCP 80 KCP 100 KCP 150
Working area
Pressure force 50 t 80 t 100 t 150 t
Operating pressure (max.) 320 bar
Piston travel per work stroke 250 mm
Stroke speed 6,3 mm/s 5,7 mm/s 6,2 mm/s 6,3 mm/s
Return speed 42 mm/s 40 mm/s 49 mm/s 40 mm/s
Guideway diameters 50 mm
Table dimensions 700×450 mm 700×500 mm 800×550 mm 900×650 mm
Ram-plate size 550×300 mm 600×350 mm 650×400 mm 700×450 mm
Workpiece height (max.) 400 mm
Working height 850 mm 850 mm 900 mm 950 mm
Rapid feed
Rapid feed 30 mm/s 28 mm/s 30 mm/s 26 mm/s
Drive capacity
Motor rating main drive 4 kW 5,5 kW 7,5 kW 10 kW
Measures and weights
Overall dimensions (length x width x height) 1,35×1,18×2,05 m 1,5×1,23×2,06 m 1,65×1,26×2,25 m 1,85×1,4×2,39 m
Weight 1.750 kg 2.180 kg 2.820 kg 3.850 kg

Details

Overview Specs


Technical Data

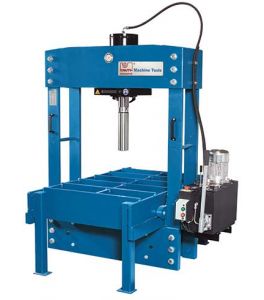

PWP 100 PWP 150
Working area
Gantry width 1.100 mm
Table dimensions 1.740×996 mm
Table height 720 mm 760 mm
Portal travel 1.080 mm
Piston travel 700 mm
Distance piston/ table surface max. 700 mm
Pressure force 100 t 150 t
Operating pressure (max.) 258 bar 255 bar
Stroke 380 mm 400 mm
Forward motion speed 7,54 mm/s 7,48 mm/s
Press speed 2,47 mm/s 2,4 mm/s
Return speed 9,06 mm/s 9,35 mm/s
Drive capacity
Motor rating hydraulic pump 2,2 kW 3 kW
Measures and weights
Hydraulic tank volume 30 l
Overall dimensions (length x width x height) 1,74×1,67×2,03 m 1,74×1,73×2,1 m
Weight 1.395 kg 2.185 kg

Details

Overview Specs


Technical Data

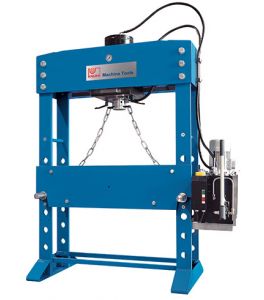

KNWP 60 HM KNWP 100 HM KNWP 160 HM KNWP 100 HM L KNWP 160 HM L KNWP 200 HM
Working area
Pressure force 60 t 100 t 160 t 100 t 160 t 200 t
Operating pressure (max.) 259 bar 258 bar 255 bar 258 bar 255 bar 243 bar
Stroke 380 mm 380 mm 400 mm 380 mm 400 mm 400 mm
Forward motion speed 8,69 mm/s 7,54 mm/s 7,48 mm/s 7,54 mm/s 7,48 mm/s 5,73 mm/s
Press speed 2,07 mm/s 2,47 mm/s 2,4 mm/s 2,47 mm/s 2,4 mm/s 1,84 mm/s
Return speed 10,79 mm/s 9,06 mm/s 9,35 mm/s 9,06 mm/s 9,35 mm/s 7,08 mm/s
Drive capacity
Motor rating hydraulic pump 1,5 kW 2,2 kW 3 kW 2,2 kW 3 kW 3 kW
Measures and weights
Hydraulic tank volume 41 l 46 l 57 l 46 l 57 l 64 l
Weight 540 kg 970 kg 1.195 kg 1.145 kg 1.430 kg 1.690 kg

Details

Overview Specs


Technical Data

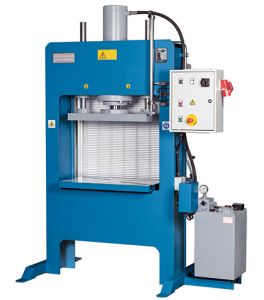

KP 70 KP 100 KP 150 KP 200
Working area
Pressure force 70 t 100 t 150 t 200 t
Stroke 500 mm
Working speed 2 mm/s 4 mm/s 3 mm/s 2 mm/s
Approach speed 20 mm/s 26 mm/s 22 mm/s 20 mm/s
Drive capacity
Motor rating hydraulic pump 1,5 kW 4 kW 4 kW 5,5 kW
Measures and weights
Weight 1.450 kg 2.300 kg 4.900 kg 5.800 kg
Overall dimensions (length x width x height) 1,85×1,04×2,25 m 2,08×1,05×2,26 m 2,35×1,5×2,5 m 2,35×1,6×2,5 m

Details

Overview Specs


Technical Data

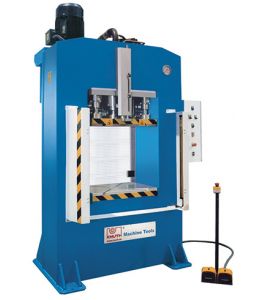

KPP 80 KPP 100 KPP 150 KPP 220 Hydr. Productionpress KPP 300 KPP 500
Working area
Pressure force 80 t 100 t 150 t 220 t 300 t 500 t
Operating pressure (max.) 320 bar 320 bar 320 bar 320 bar 320 bar 260 bar
Piston travel 250 mm 250 mm 250 mm 300 mm 300 mm 500 mm
Stroke speed 5,7 mm/s 6,2 mm/s 4 mm/s 3,8 mm/s 2,8 mm/s 2,8 mm/s
Return speed 40 mm/s 49 mm/s 40 mm/s 30 mm/s 21 mm/s 16,6 mm/s
Guideway diameters 50 mm 50 mm 50 mm 60 mm 60 mm 80 mm
Table dimensions 700×500 mm 700×500 mm 750×550 mm 800×600 mm 850×650 mm 1000×850 mm
Ram-plate size 650×450 mm 600×450 mm 650×500 mm 700×550 mm 750×600 mm 900×800 mm
Work space 400×800 mm 400×800 mm 400×850 mm 500×900 mm 500×950 mm 700×1.150 mm
Working height 900 mm 900 mm 950 mm 1.000 mm 1.000 mm 1.000 mm

Details

Overview Specs


KNWP 30 M KNWP 15 M KNWP 50 M
Working area
Pressure force 30 t 15 t 50 t
Operating pressure (max.) 374,6 bar 382,2 bar 399,5 bar
Total piston stroke 160 mm
Throat width 565 mm 560 mm 750 mm
Measures and weights
Hydraulic tank volume 1,65 l
Weight 150 kg 117 kg 250 kg
Overall dimensions (length x width x height) 0,83×0,64×2,05 m 0,83×0,6×1,93 m 1,1×0,76×2,12 m

Details

Overview Specs


Technical Data

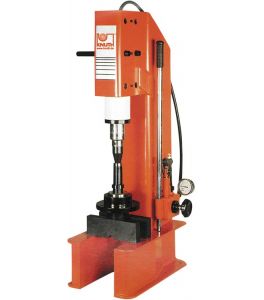

Working area

Pressure force 15 t

Operating pressure (max.)      294 bar

Table dimensions       300×300 mm

Piston bore      80 mm

Ram-to-table surface distance 500 mm

Measures and weights

Height 1.060 mm

Weight 145 kg

Part No.           130042

Details

Overview Specs


Technical Data

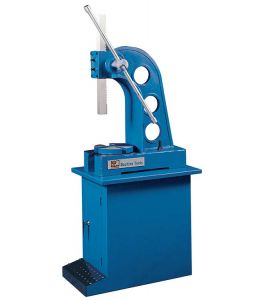

1 T 2 T 3 T 5 T
Working area
Press force 5 kN 10 kN 15 kN 20 kN
Throat 100 mm 145 mm 170 mm 220 mm
Workpiece thickness (max.) 147 mm 215 mm 317 mm 400 mm
Ram dimensions 25x25x266 mm 31x31x336 mm 35x35x450 mm 50x50x645 mm
Measures and weights
Overall dimensions (length x width x height) 0,24×0,13×0,32 m 0,4×0,17×0,42 m 0,45×0,2×0,56 m 0,64×0,37×0,82 m
Weight 17 kg 45 kg 69 kg 163 kg

Details

Overview Specs


Technical Data

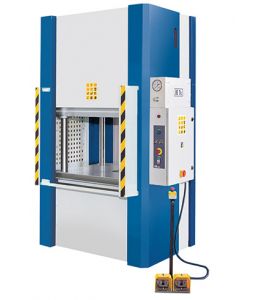

KVP 50 KVP 80 KVP 100 KVP 150 KVP 220 KVP 300
Working area
Pressure force 50 t 80 t 100 t 150 t 220 t 300 t
Piston travel 450 mm
Stroke speed 6,3 mm/s 6 mm/s 6,2 mm/s 3,9 mm/s 3,8 mm/s 2,8 mm/s
Return speed 42 mm/s 36 mm/s 48 mm/s 31 mm/s 30 mm/s 18 mm/s
Guideway diameters 60 mm 80 mm 100 mm 120 mm 120 mm 150 mm
Ram-plate size 750×620 mm 900×850 mm 1.050×950 mm 1.050×950 mm 1.200×950 mm 1.300×1.000 mm
Column distance 750×410 mm 900×600 mm 1.050×650 mm 1.050×590 mm 1.200×590 mm 1.300×570 mm
Workpiece height (max.) 600 mm 600 mm 650 mm 700 mm 750 mm 800 mm
Working height 750 mm 900 mm 900 mm 900 mm 900 mm 900 mm

Details

Overview Specs


Technical Data

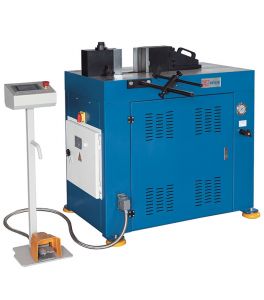

Working area

Pressure force 40 t

Hydraulic pressure max.         260 bar

Y-axis stroke  250 mm

Piston diam.    50 mm

Bending speed 2,8 mm/s

Return speed   21,5 mm/s

Table size       1.050×620 mm

Drive capacity

Motor rating main drive         1,5 kW

Measures and weights

Overall dimensions (length x width x height)            1,55×0,8×1,36 m

Weight 680 kg

Part No.           130611

Details

Overview Specs


Technical Data

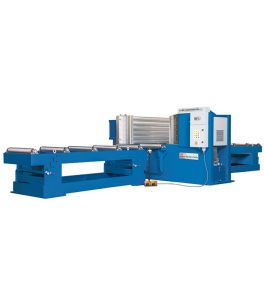

KRP 150 KRP 220 KRP 300
Working area
Pressure force 150 t 220 t 300 t
Operating pressure (max.) 320 bar
Total piston stroke 450 mm
Stroke speed 2 mm/s 2,2 mm/s 2 mm/s
Return speed 15,4 mm/s 16,2 mm/s 14,7 mm/s
Guideway diameters 50 mm 60 mm 60 mm
Base plate-to-ram distance 700 mm 800 mm 900 mm
Table dimensions 2.000×500 mm 2.500×600 mm 2.500×750 mm
Ram-plate size 500×500 mm 600×600 mm 750×750 mm
Bending die dimensions 100x100x500 mm 120x120x600 mm 150x150x750 mm
Working height 850 mm 900 mm 950 mm

Details

Overview Specs

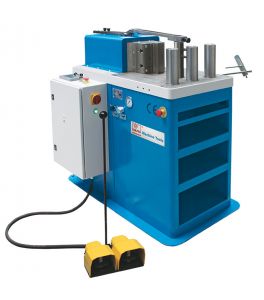

Working area
Pressure force 28 t
Hydraulic pressure max. 200 bar
Y-axis stroke 180 mm
Piston diam. 130 mm
Bending speed 2 – 9,8 mm/s
Return speed 20 mm/s
Table size 300×550 mm
Fastening holes in working table 4 Pieces
Diameter fastening holes 70 mm
