Turning

Details

Overview Specs

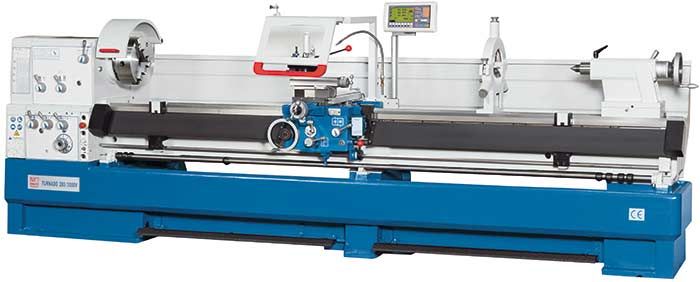

Turnado 230/1500 V Turnado 280/1500 V Turnado 230/1000 V Turnado 230/2000 V Turnado 280/2000 V
Working area
Center height 230 mm 280 mm 230 mm 230 mm 280 mm
Workpiece length (max.) 1.500 mm 1.428 mm 1.000 mm 2.000 mm 1.928 mm
In-gap diameter over bed 460 mm 560 mm 460 mm 460 mm 560 mm
Turning-Ø over support 224 mm 355 mm 224 mm 224 mm 355 mm
Turning diameter over gap bridge 690 mm 785 mm 690 mm 690 mm 785 mm
Gap bridge length 155 mm 170 mm 155 mm 155 mm 170 mm
Bed width 300 mm 350 mm 300 mm 300 mm 350 mm

Details

Overview Specs

Turnado 230/1000 Turnado 230/1500 Turnado 280/1500 Turnado 230/2000 Turnado 280/2000
Working area
Workpiece length (max.) 1.000 mm 1.500 mm 1.428 mm 2.000 mm 1.928 mm
In-gap diameter over bed 460 mm 460 mm 560 mm 460 mm 560 mm
Turning-Ø over support 224 mm 224 mm 355 mm 224 mm 355 mm
Turning diameter over gap bridge 690 mm 690 mm 785 mm 690 mm 785 mm
Gap bridge length 155 mm 155 mm 170 mm 155 mm 170 mm
Bed width 300 mm 300 mm 350 mm 300 mm 350 mm
Center height 230 mm 230 mm 280 mm 230 mm 280 mm

Details

Overview Specs

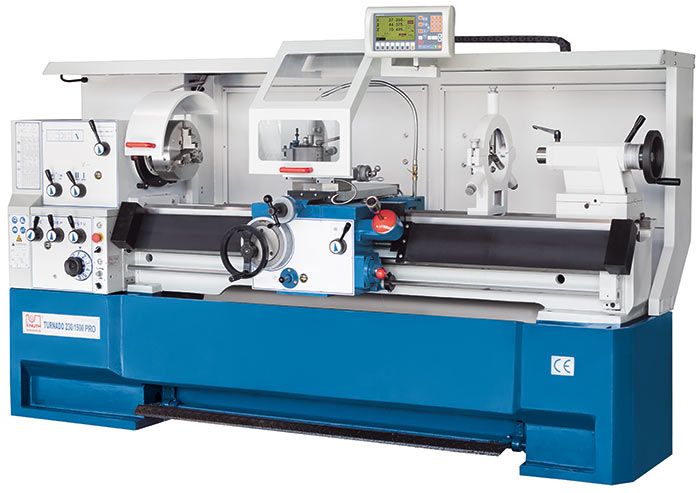

Turnado 230/1000 PRO Turnado 230/1500 PRO Turnado 280/1500 PRO
Working area
Center width 1.000 mm 1.500 mm 1.500 mm
Center height 230 mm 230 mm 280 mm
In-gap diameter over bed 460 mm 460 mm 560 mm
Turning diameter over gap bridge 690 mm 690 mm 785 mm
Turning-Ø over support 224 mm 224 mm 355 mm
Gap bridge length 155 mm 155 mm 170 mm
Bed width 300 mm 300 mm 350 mm
Travels
Travel X-axis 285 mm 285 mm 316 mm
Travel Z1-axis 128 mm 128 mm 130 mm

Details

Overview Specs

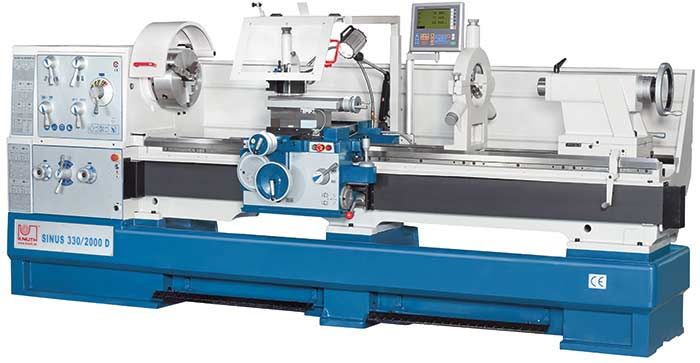

  Sinus 330/1500 D Sinus 330/2000 D Sinus 330/3000 D Sinus 400/2000 D Sinus 400/1500 D Sinus 400/3000 D
Working area
Workpiece length (max.) 1.500 mm 2.000 mm 3.000 mm 2.000 mm 1.500 mm 3.000 mm
Turning diameter over bed 660 mm 660 mm 660 mm 800 mm 800 mm 800 mm
Turning-Ø over support 440 mm 440 mm 440 mm 570 mm 570 mm 570 mm
Turning diameter without gap bridge 900 mm 900 mm 900 mm 1.035 mm 1.035 mm 1.035 mm
Gap bridge length 320 mm 320 mm 320 mm 330 mm 330 mm 330 mm
Bed width 400 mm

Details

Overview Specs



Working area
Center width 1.000 mm
Center height 205 mm
Turning diameter over bed 380 mm
Turning diameter over gap bridge 580 mm
Turning-Ø over support 255 mm
Gap bridge length 250 mm
Bed width 250 mm
Travels
Travel X-axis 210 mm
Travel Z1-axis 140 mm
Swing range of top slide ± 45°

Details

Overview Specs


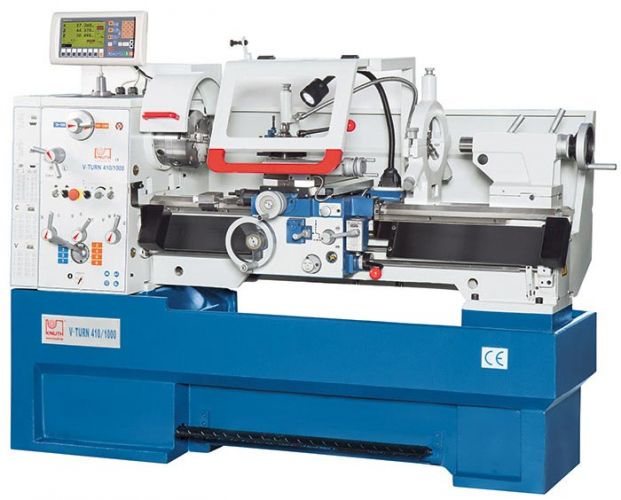

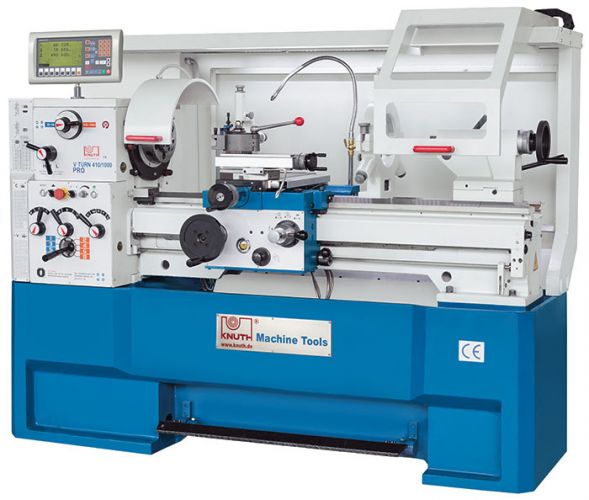

V-Turn 410/1000 V-Turn 410/1500
Working area
Center width 1.000 mm 1.500 mm
Center height 205 mm
Turning diameter over bed 380 mm
Turning diameter over gap bridge 580 mm
Turning-Ø over support 255 mm
Gap bridge length 250 mm 190 mm
Bed width 250 mm
Travels
Travel X-axis 210 mm
Travel Z1-axis 140 mm
Swing range of top slide ± 45°
Headstock
Speed range, high 550 – 3.000 1/min
Speed range, low 30 – 550 1/min
Spindle bore 52 mm
Spindle mount Camlock D1-6
Spindle taper MT 6

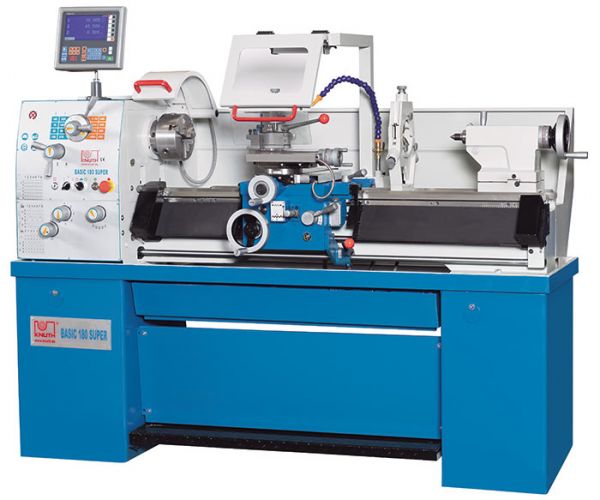

Details

Overview Specs


Working area
Center width 1.000 mm
Turning diameter over bed 356 mm
Turning-Ø over support 220 mm
Turning diameter over gap bridge 506 mm
Gap bridge length 206 mm
Bed width 206 mm
Travels
Travel X-axis 178 mm
Travel Z1-axis 92 mm
Swing range of top slide ± 50°
Headstock
Spindle speed (16) 45 – 1.800 1/min
Spindle bore 38 mm
Spindle mount Camlock D1-4
Spindle taper MT 5

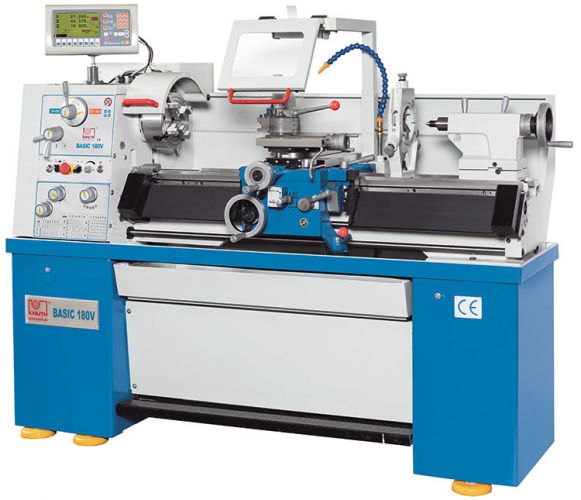

Details

Overview Specs




Working area
Center width 1.000 mm
Turning diameter over bed 356 mm
Turning-Ø over support 220 mm
Turning diameter over gap bridge 506 mm
Gap bridge length 206 mm
Bed width 206 mm
Travels
Travel X-axis 178 mm
Travel Z1-axis 92 mm
Swing range of top slide ± 50°

Details

Overview Specs


Working area
Center width 810 mm
Turning diameter over bed 300 mm
Turning-Ø over support 178 mm
Bed width 180 mm
Travels
Travel X-axis 155 mm
Travel Z1-axis 95 mm
Swing range of top slide ± 60°

Details

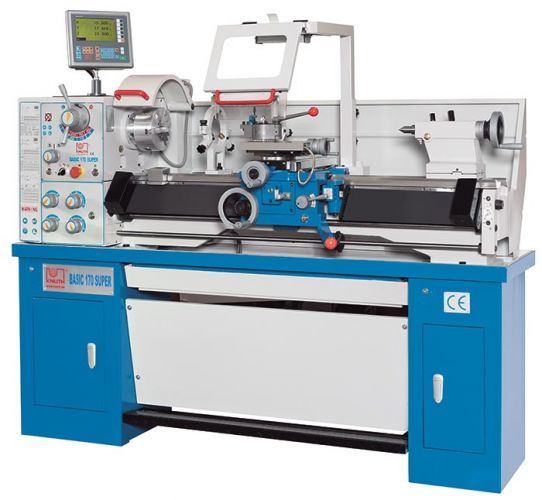

Overview Specs


Working area
Center width 1.000 mm
Turning diameter over bed 330 mm
Turning-Ø over support 198 mm
Travels
Travel X-axis 170 mm
Travel Z1-axis 95 mm
Swing range of top slide ± 360°

Details

Overview Specs


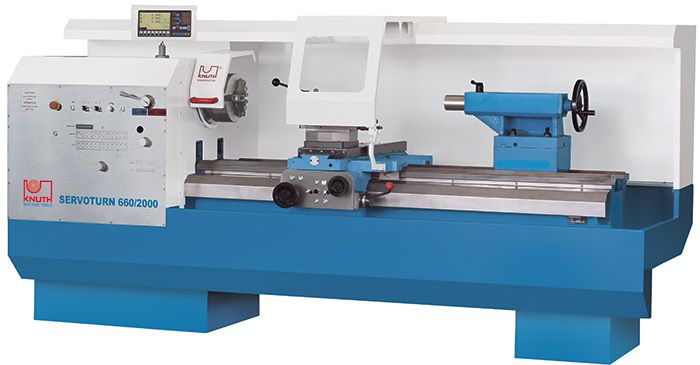

Servoturn 500/1000 Servoturn 500/1500 Servoturn 500/2000 Servoturn 660/1500 Servoturn 660/2000
Working area
Center width 950 mm 1.450 mm 1.950 mm 1.470 mm 1.970 mm
Turning diameter over bed 500 mm 500 mm 500 mm 660 mm 660 mm
Turning-Ø over support 300 mm 300 mm 300 mm 450 mm 450 mm
Bed width 400 mm
Travels
Travel X-axis 260 mm 260 mm 260 mm 350 mm 350 mm
Travel Z-axis 920 mm 1.420 mm 1.900 mm 1.420 mm 1.900 mm
Travel Z1-axis 100 mm
Headstock
Spindle speed 30 – 2.400 1/min 30 – 2.400 1/min 30 – 2.400 1/min 30 – 1.800 1/min 30 – 1.800 1/min
Spindle bore 86 mm
Spindle mount A2-8
Lathe chuck diameter 250 mm 250 mm 250 mm 315 mm 315 mm
Rapid feed
X-axis rapid feed 4 m/min
Z-axis rapid feed 4 m/min

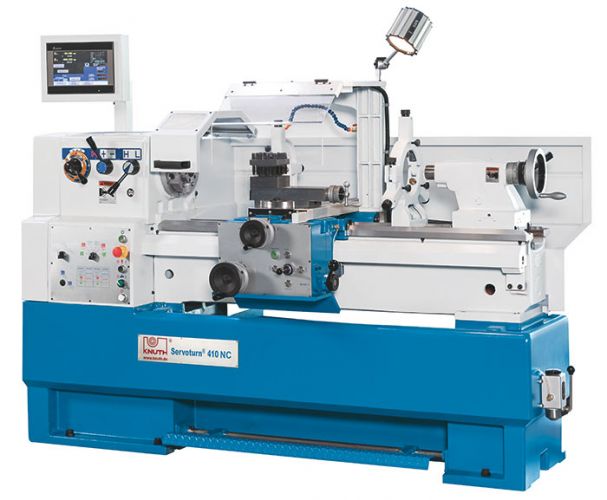

Details

Overview Specs


Working area
Center width 1.016 mm
Turning diameter over bed 410 mm
Turning diameter over support 240 mm
Turning diameter without gap bridge 520 mm
Bed width 300 mm
Travels
Travel X-axis 240 mm
Travel Z1-axis 120 mm
Headstock
Spindle speed (12) 30 – 2.000 1/min
Spindle bore 52 mm
Spindle mount D1/6
Spindle taper MK 6

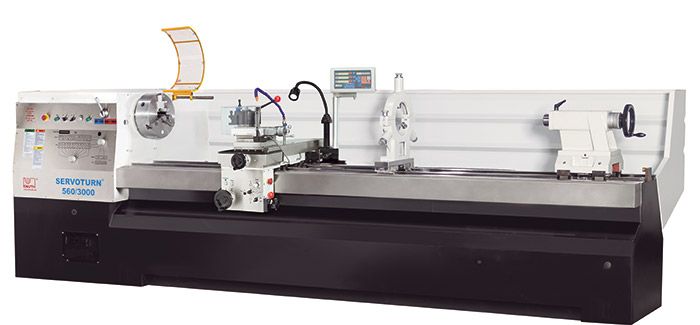

Details

Overview Specs


Working area
Workpiece length (max.) 2.200 mm
Turning diameter over bed 560 mm
Turning-Ø over support 350 mm
Bed width 350 mm
Travels
Travel X-axis 316 mm
Travel Z-axis 2.000 mm
Travel Z1-axis 100 mm
Headstock
Spindle speed 25 – 1.600 1/min
Spindle bore 80 mm
Spindle mount D1-8
Spindle taper MT 7

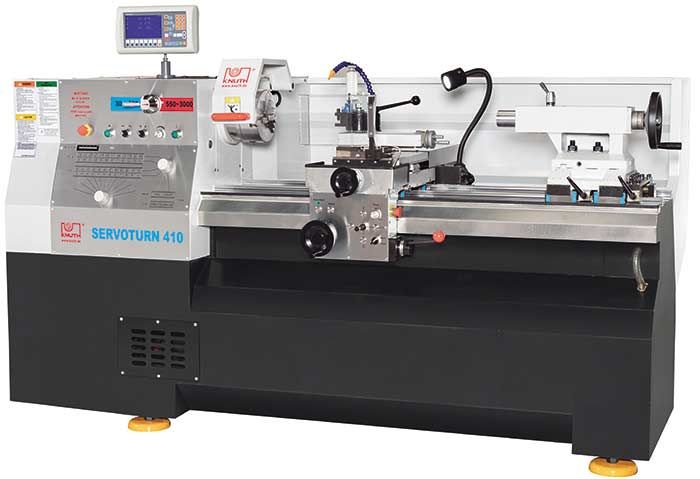

Details

Overview Specs




Working area
Workpiece length (max.) 1.050 mm
Turning diameter over bed 410 mm
Turning-Ø over support 250 mm
Bed width 300 mm
Travels
Travel X-axis 225 mm
Travel Z-axis 960 mm
Travel Z1-axis 100 mm
Headstock
Spindle speed 30 – 3.000 1/min
Spindle bore 52 mm
Spindle mount D1-6
Spindle taper MT 6

Details

Overview Specs


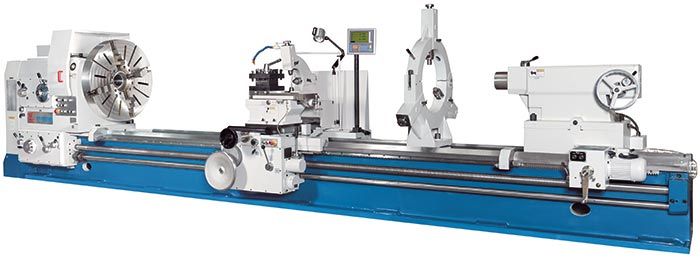

DL E Heavy 500/3000 DL E Heavy 500/5000 DL E Heavy 500/8000 DL E Heavy 620/3000 DL E Heavy 620/5000 DL E Heavy 800/3000 DL E Heavy 800/5000 DL E Heavy 800/8000 DL E Heavy 1000/2000 DL E Heavy 1000/5000 DL E Heavy 1000/8000 DL E Heavy 500/1500 DL E Heavy 620/1500 DL E Heavy 1000/3000 DL E Heavy 620/8000
Working area
Workpiece length (max.) 3.000 mm 5.000 mm 8.000 mm 3.000 mm 5.000 mm 3.000 mm 5.000 mm 8.000 mm 2.000 mm 5.000 mm 8.000 mm 1.500 mm 1.500 mm 3.000 mm 8.000 mm
Turning diameter over bed 1.000 mm 1.000 mm 1.000 mm 1.250 mm 1.250 mm 1.600 mm 1.600 mm 1.600 mm 2.000 mm 2.000 mm 2.000 mm 1.000 mm 1.250 mm 2.000 mm 1.250 mm
Turning-Ø over support 650 mm 650 mm 650 mm 900 mm 900 mm 1.280 mm 1.280 mm 1.280 mm 1.600 mm 1.600 mm 1.600 mm 650 mm 900 mm 1.600 mm 900 mm
Workpiece weight (max.) 6.000 kg 6.000 kg 6.000 kg 6.000 kg 6.000 kg 6.000 kg 6.000 kg 6.000 kg 10.000 kg 10.000 kg 10.000 kg 6.000 kg 6.000 kg 10.000 kg 6.000 kg
Bed width 755 mm 755 mm 755 mm 755 mm 755 mm 970 mm 970 mm 970 mm 1.100 mm 1.100 mm 1.100 mm 755 mm 755 mm 1.100 mm 755 mm
Travels
Travel X-axis 510 mm 510 mm 510 mm 630 mm 630 mm 820 mm 820 mm 820 mm 1.020 mm 1.020 mm 1.020 mm 510 mm 630 mm 1.020 mm 630 mm
Travel Z-axis 2.800 mm 4.800 mm 7.800 mm 2.800 mm 4.800 mm 2.800 mm 4.800 mm 7.800 mm 1.800 mm 4.800 mm 7.800 mm 1.300 mm 1.300 mm 2.800 mm 7.800 mm
Travel Z1-axis 300 mm 300 mm 300 mm 300 mm 300 mm 200 mm

Details

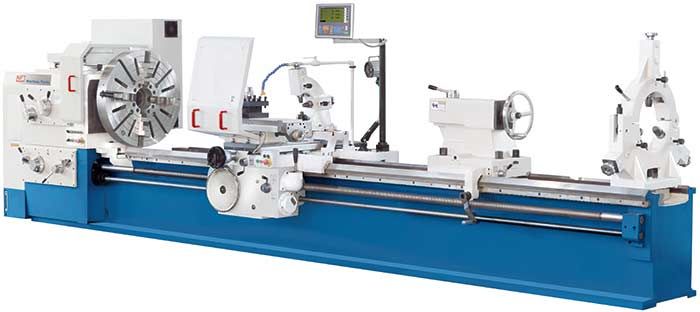

Overview Specs


Working area
Workpiece length (max.) 1.500 mm 3.000 mm 4.000 mm 5.000 mm 1.500 mm 3.000 mm 4.000 mm 5.000 mm
Turning diameter over bed 850 mm 850 mm 850 mm 850 mm 1.000 mm 1.000 mm 1.000 mm 1.000 mm
Turning-Ø over support 520 mm 520 mm 520 mm 520 mm 720 mm 720 mm 720 mm 720 mm
Turning diameter over gap bridge 1.150 mm 1.150 mm 1.150 mm 1.150 mm 1.350 mm 1.350 mm 1.350 mm 1.350 mm
Workpiece weight (max.) 4.000 kg
Gap bridge length 470 mm
Bed width 600 mm
Travels
Travel X-axis 550 mm
Travel Z-axis 1.380 mm 2.800 mm 3.800 mm 4.800 mm 1.380 mm 2.800 mm 3.800 mm 4.800 mm
Travel Z1-axis 250 mm
Swing range of top slide 90°

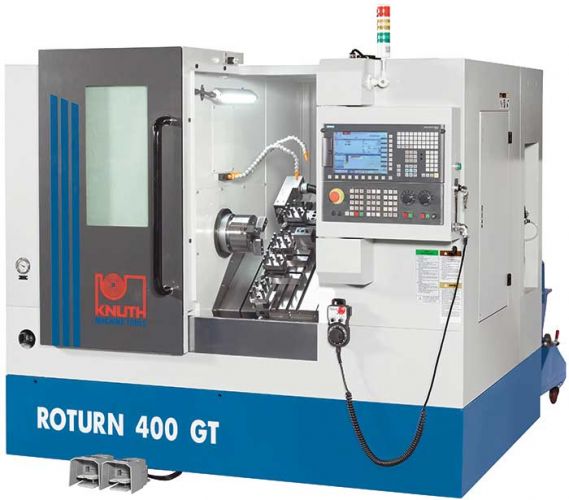

Details

Overview Specs


Working area

Workpiece length (max.)              430 mm

Center height     200 mm

Turning diameter over bed          400 mm

Turning diameter over support   250 mm



Travels

Travel X-axis       200 mm

Travel Z-axis       450 mm



Headstock

Lathe chuck diameter     200 mm

Speed range       50 – 3.000 1/min

Spindle mount   A2-6

Spindle bore       62 mm

Spindle bore with draw tube       46 mm

Details

Overview Specs


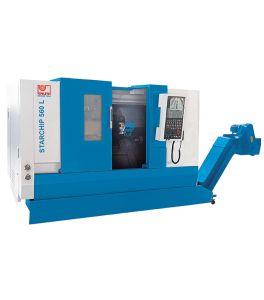

Starchip 560 Starchip 560 L
Working area
Workpiece length (max.) 500 mm 1.000 mm
Maximum workpiece weight 200 – 500 kg
Angle of slant bed 45 deg
Turning-Ø over bed (max.) 560 mm
Turning-Ø over support 350 mm
Travels
Travel X-axis 200 mm
Travel Z-axis 560 mm 1.050 mm
Headstock
Spindle speed 4.500 1/min
Spindle mount ISO A2-6
Lathe chuck diameter 250 mm
Spindle bore 65 mm
Spindle bore with draw tube 50 mm



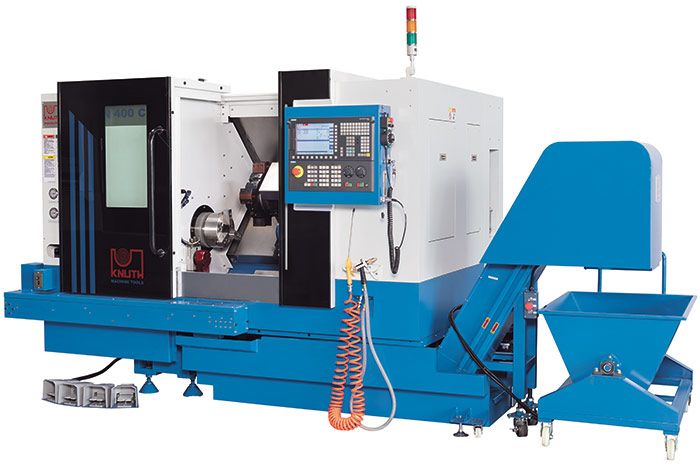

Details

Overview Specs


Working area

Workpiece length (max.)              380 mm

Center height     200 mm

Turning diameter over bed          400 mm

Turning-Ø over support  140 mm

Travels

Travel X-axis       460 mm

Travel Z-axis       400 mm

Headstock

Speed range       60 – 5.000 1/min

Spindle mount   A2-5

Spindle bore       56 mm

Spindle bore with draw tube       38 mm



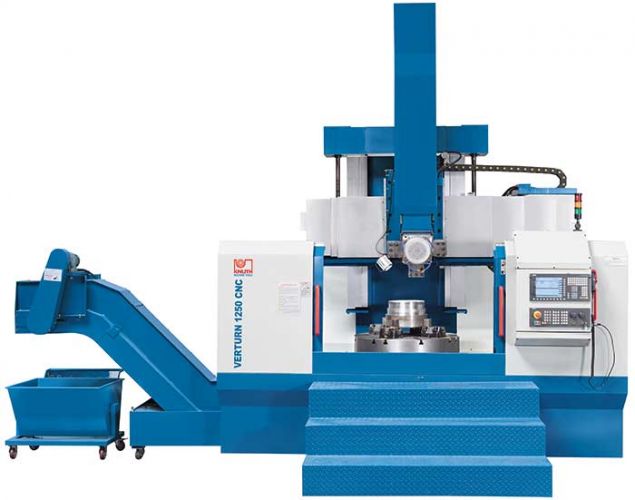

Details

Overview Specs


Technical Data

Verturn II VDM 1250 CNC Verturn II VDM 1600 CNC Verturn II VDM 2300 CNC
Working area
Turning diameter, vertical 1.250 mm 1.600 mm 2.300 mm
Machining height (max.) 1.000 mm 1.200 mm 1.400 mm
Workpiece weight (max.) 3.200 kg 5.000 kg 8.000 kg
Travels
Travel X-axis 700 mm 915 mm 1.180 mm
Travel Z-axis 650 mm 800 mm 1.000 mm
Travel Z1-axis 650 mm 850 mm 1.050 mm
Headstock
Speed range 0,5 – 250 1/min 0,5 – 200 1/min 0,5 – 100 1/min
Spindle torque (max.) 23.000 Nm 37.500 Nm 52.500 Nm
Lathe chuck diameter 1.000 mm 1.400 mm 2.000 mm



Details

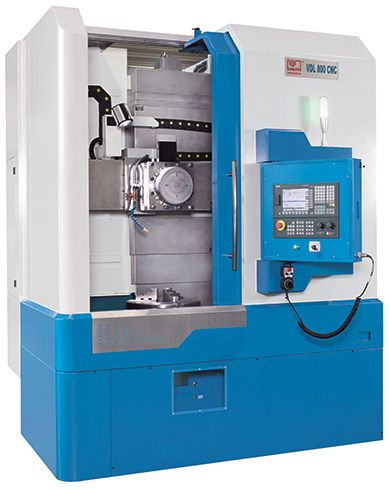

Overview Specs


Technical Data

Working area

Turning diameter over bed          800 mm

Rotating diameter (max.)              700 mm

Workpiece weight (max.)              600 kg

Travels

Travel X-axis       520 mm

Travel Z-axis       700 mm

Headstock

Speed range       0 – 300 1/min

Lathe chuck diameter     500 mm

Rapid feed

Rapid feed X-axis             8.000 mm/min

Rapid feed Z-axis              10.000 mm/min

Details

Overview Specs


Technical Data

Working area

Turning diameter over bed          800 mm

Rotating diameter (max.)              700 mm

Workpiece weight (max.)              600 kg

Travels

Travel X-axis       520 mm

Travel Z-axis       700 mm

Headstock

Speed range       0 – 300 1/min

Lathe chuck diameter     500 mm

Rapid feed

Rapid feed X-axis             8.000 mm/min

Rapid feed Z-axis              10.000 mm/min

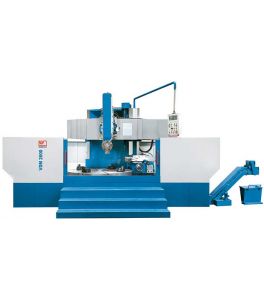

Details

Overview Specs


Technical Data

VDM 800 S VDM 1000 S VDM 1250 S VDM 1600 S VDM 2300 S VDM 2600 S
Working area
Rotating diameter (max.) 800 mm 1.000 mm 1.250 mm 1.600 mm 2.300 mm 2.600 mm
Turning diameter of upper tool holder 800 mm 1.000 mm 1.250 mm 1.600 mm 2.300 mm 2.600 mm
Turning diameter of side tool holder 720 mm 900 mm 1.000 mm 1.400 mm 2.000 mm 2.300 mm
Machining height (max.) 800 mm 800 mm 1.000 mm 1.000 mm 1.350 mm 1.500 mm
Swivel range of upper tool holder ± 30°
Workpiece length (max.) 800 mm 800 mm 1.000 mm 1.000 mm 1.350 mm 1.500 mm
Workpiece weight (max.) 1.200 kg 2.000 kg 3.200 kg 5.000 kg 8.000 kg 10.000 kg
Travels
Travel X1 axis, upper support 570 mm 670 mm 700 mm 915 mm 1.150 mm 1.300 mm
Travel Z1 axis , upper support 600 mm 600 mm 650 mm 800 mm 1.000 mm 1.000 mm
Travel W-axis, traverse 580 mm 580 mm 650 mm 650 mm 1.000 mm 1.100 mm
Travel X2 axis, side support 500 mm 500 mm 630 mm 630 mm 630 mm 730 mm
Travel Z2 axis, side support 800 mm 800 mm 900 mm 900 mm 980 mm 1.180 mm
Headstock
Speed range (16) 10 – 315 1/min (16) 8 – 250 1/min (16) 6,3 – 200 1/min (16) 5 – 160 1/min (16) 3,2 – 100 1/min (16) 1,4 – 45 1/min
Spindle torque (max.) 10.000 Nm 12.500 Nm 17.500 Nm 25.000 Nm 32.000 Nm 32.000 Nm
Rotary table diameter 720 mm 900 mm 1.000 mm 1.400 mm 2.000 mm 2.300 mm

Details

Overview Specs


Technical Data

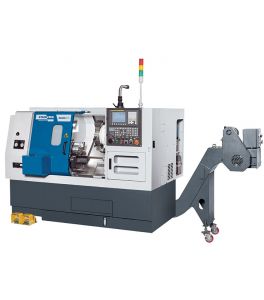

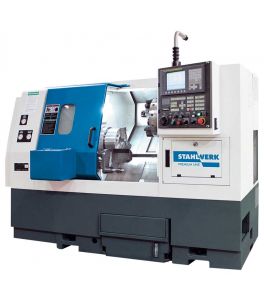

Orion 6TL Orion 10TL
Working area
Turning-Ø over bed (max.) 480 mm
Turning-Ø over support 285 mm
Turning diameter (max.) 280 mm
Turning length (max.) 520 mm 485 mm
Travels
Travel X-axis 165 mm 160 mm
Travel Z-axis 520 mm 480 mm
Angle of slant bed 45 deg
Headstock
Bar capacity (incl. chuck) 44 mm 74 mm
Spindle speed 6.000 1/min 3.500 1/min
Spindle mount A2-5 A2-8
Spindle bore 55 mm 87 mm
Spindle torque (max.) 110 Nm 186 Nm
Spindle drive method Belt
Lathe chuck diameter 150 mm 250 mm

Details

Overview Specs


Technical Data

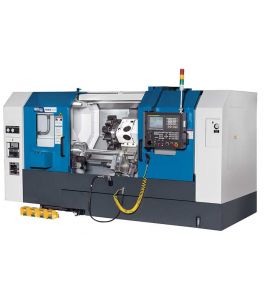

Taurus 300L Taurus 450 Taurus 250 Taurus 450L
Working area
Turning-Ø over bed (max.) 610 mm 775 mm 610 mm 775 mm
Turning-Ø over support 480 mm 630 mm 480 mm 630 mm
Turning diameter (max.) 400 mm 690 mm 400 mm 690 mm
Turning length (max.) 2.080 mm 1.465 mm 1.080 mm 2.265 mm
Travels
Travel X-axis 230 mm 350 mm 230 mm 350 mm
Travel Z-axis 2.130 mm 1.530 mm 1.130 mm 2.330 mm
Angle of slant bed 45 deg
Headstock
Bar capacity (incl. chuck) 90 mm 119 mm 76 mm 119 mm
Spindle speed 3.000 1/min 2.000 1/min 3.500 1/min 2.000 1/min
Spindle mount A2-8 A2-11 A2-8 A2-11
Spindle bore 105 mm 132 mm 86 mm 132 mm
Spindle torque max. (steps) 470 Nm 2.628 Nm 470 Nm 2.628 Nm
Spindle drive method Belt
Lathe chuck diameter 300 mm 450 mm 250 mm 450 mm

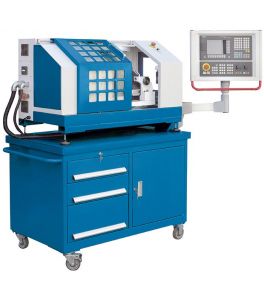

Details

Overview Specs


Technical Data

Working area

Workpiece length (max.)              280 mm

Turning diameter over bed          200 mm

Turning-Ø over support  90 mm

Travels

Travel X-axis       86 mm

Travel Z-axis       155 mm

Headstock

Speed range       100 – 3.000 1/min

Spindle mount   MK 3

Spindle bore       20 mm

Lathe chuck diameter     100 mm

Details

Overview Specs


Technical Data

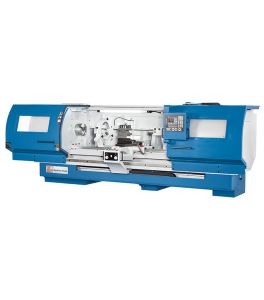

Forceturn 630.15 Forceturn 630.30 Forceturn 630.50 Forceturn 800.15 Forceturn 800.30 Forceturn 800.50
Working area
Turning diameter over bed 670 mm 670 mm 670 mm 818 mm 818 mm 818 mm
Bed width 450 mm
Center height 335 mm 335 mm 335 mm 420 mm 420 mm 420 mm
Turning-Ø over support 400 mm 400 mm 400 mm 570 mm 570 mm 570 mm
Workpiece length (max.) 1.600 mm 3.100 mm 5.100 mm 1.600 mm 3.100 mm 5.100 mm
Travels
Travel X-axis 450 mm
Travel Z-axis 1.500 mm 3.000 mm 5.000 mm 1.500 mm 3.000 mm 5.000 mm
Headstock
Speed range 27 – 2.250 1/min 27 – 2.250 1/min 27 – 2.250 1/min 20 – 1.500 1/min 20 – 1.500 1/min 20 – 1.500 1/min
Spindle mount D1-8 D1-8 D1-8 A1-11 A1-11 A1-11
Spindle bore 85 mm 85 mm 85 mm 105 mm 105 mm 105 mm

Details

Overview Specs


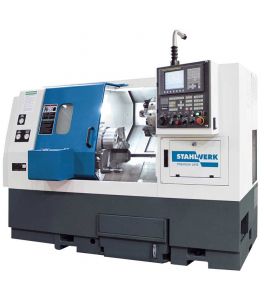

Orion 6TLM Orion 10TLM
Working area
Turning-Ø over bed (max.) 480 mm
Turning-Ø over support 285 mm
Turning diameter (max.) 190 mm
Turning length (max.) 390 mm 355 mm
Travels
Travel X-axis 165 mm 160 mm
Travel Z-axis 400 mm 380 mm
Angle of slant bed 45 deg
Headstock
Bar capacity (incl. chuck) 44 mm 74 mm
Spindle speed 6.000 1/min 3.500 1/min
Spindle mount A2-5 A2-8
Spindle bore 55 mm 87 mm
Spindle torque (max.) 70 Nm 127 Nm

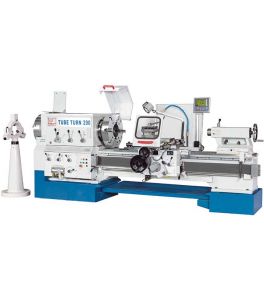

Details

Overview Specs


Technical Data

TubeTurn 200 TubeTurn 135 TubeTurn 225
Working area
Workpiece length (max.) 1.300 mm
Turning diameter over bed 630 mm
Turning-Ø over support 350 mm 350 mm 380 mm
Travels
Travel X-axis 340 mm
Travel Z-axis 1.300 mm
Headstock
Speed range 24 – 300 1/min 14 – 496 1/min 24 – 300 1/min
Spindle torque (max.) 2.050 Nm 1.920 Nm 1.920 Nm
Lathe chuck diameter 500 mm 400 mm 500 mm
Spindle bore 200 mm 130 mm 225 mm
Spindle bore in chuck 200 mm 130 mm 225 mm

Details

Overview Specs


Technical Data

Working area

Turning-Ø over bed (max.)    480 mm

Turning-Ø over support          285 mm

Turning diameter (max.)        280 mm

Turning length (max.) 520 mm

Travels

Travel X-axis  165 mm

Travel Z-axis  520 mm

Angle of slant bed       45 deg

Headstock

Bar capacity (incl. chuck)      44 mm

Spindle speed  6.000 1/min

Spindle mount A2-5

Spindle bore    55 mm

Spindle torque (max.) 110 Nm

Spindle drive method Riemenantrieb / Belt

Lathe chuck diameter 150 mm

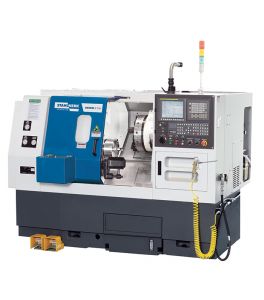

Details

Overview Specs


Technical Data

Working area

Turning-Ø over bed (max.)    480 mm

Turning-Ø over support          285 mm

Turning diameter (max.)        190 mm

Turning length (max.) 380 mm

Travels

Travel X-axis  165 mm

Travel Z-axis  390 mm

Angle of slant bed       45 deg

Headstock

Bar capacity (incl. chuck)      51 mm

Spindle speed  4.500 1/min

Spindle mount A2-6

Spindle bore    62 mm

Spindle torque (max.) 90 Nm

Spindle drive method Riemenantrieb

Lathe chuck diameter 200 mm

Angular resolution, C- axis    360 (0,001) deg
