H Series

Details

Overview Specs

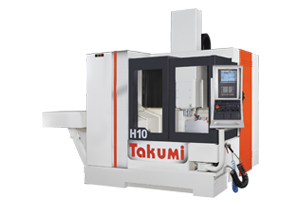

• 40.16 (X-Axis) x 27.56 (Y-Axis) x 19.69 (Z-Axis) in (1,020 x 700 x 500 mm) travels
• 1,259 inches per minute (32 m/minute) X, Y, and Z rapids
• 787 inches per minute (20 m/mintue) X, Y and Z feed rates
• 30-station swing-arm ATC
• 15,000 RPM inline direct-drive spindle
• 24.8 hp (18.5 kW) spindle
• 40 taper
• 41.3 x 27.6 in (1,050 x 700 mm) table, 1,760 lbs (800 kg) capacity
• 87.8 in (2,230 mm) door opening. (front + right side)
• Linear scales ensure repeatability and accuracy
• Weighs a impressive 20,020 lbs (9,100 kg)
• FANUC© 31i-MB Series Control

Full Product Specifications

Details

Overview Specs

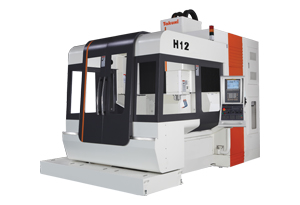

• 53.2 (X-Axis) x 37.4 (Y-Axis) x 23.6 (Z-Axis) in (1,350 x 950 x 600 mm) travels
• 1,181 inches per minute (30 m/minute) X, Y, and Z rapids
• 787 inches per minute (20 m/minute) X, Y, and Z feed rates
• 30-station swing-arm ATC
• 15,000 RPM inline direct-drive spindle
• 24.8 hp (18.5 kW) spindle
• 40 taper
• 59.1 x 37.8 in (1,500 x 960 mm) table, 3,965 lbs (1,800 kg) capacity
• 43.3 in (1,100 mm) door opening
• Linear scales ensure repeatability and accuracy
• Weighs a massive 28,600 lbs (13,000 kg)
• FANUC© 31i-MB Series Control

Full Product Specifications

Details

Overview Specs

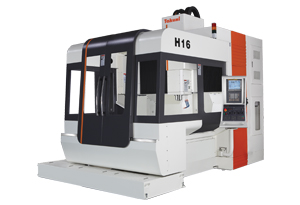

• 62.99 (X-Axis) x 51.18 (Y-Axis) x 27.56 (Z-Axis) in (1,600 x 1,300 x 700 mm) travels
• 1,181 inches per minute (30 m/minute) X, Y, and Z rapids
• 787 inches per minute (20 m/minute) X, Y, and Z feed rates
• 30-station swing-arm ATC
• 15,000 RPM inline direct-drive spindle
• 24.8 hp (18.5 kW) spindle
• 40 taper
• Chain-type conveyor standard
• 74.8 x 51.18 in (1,900 x 1,300 mm) table, 13,200 lbs (6,000 kg) capacity
• 52.0 in (1,320 mm) door opening
• Linear Scales ensure repeatability and accuracy
• Weighs a colossal 48,400 lbs (22,000 kg)
• FANUC© 31i-MB Series Control

Full Product Specifications
